Drive Shaft Repair: Step-by-Step Home Guide
Learn how to diagnose, repair, and test a driveshaft at home with practical steps, safe practices, and tool recommendations. This guide covers signs of wear, repair options, and maintenance to keep your vehicle running smoothly.
By the end of this guide, you will diagnose and repair a drive shaft by inspecting CV joints, universal joints, bearings, and the center support. Replace worn components, reattach and torque bolts to spec, and balance the shaft to reduce vibration. Always secure the vehicle on jack stands, disconnect the battery, and wear safety gear before you begin.
Understanding Driveshaft Fundamentals
The driveshaft, sometimes called a prop shaft, transmits engine torque from the transmission to the differential. It is a robust steel tube that spins at high speed and relies on joints to accommodate steering, suspension movement, and engine harmonics. When joints wear or the shaft becomes imbalanced, vibration and noise follow. Signs include rhythmic vibration at speed, clunking when accelerating or decelerating, and visible damage to boots, clamps, or balancing weights. According to Home Repair Guide, understanding these basics helps homeowners distinguish between a simple boot leak and a serious driveline issue. Early detection saves time, money, and potential collateral damage to the transmission or differential. Regular inspection during routine maintenance can catch wear long before it becomes a roadside problem.
Safety and Preparation
Before lifting the vehicle, set the parking brake, chock the opposite wheels, and work on a level surface. Wear eye protection and gloves; metal edges can cut when removing stubborn fasteners. Gather your tools and spare parts in a single tray to prevent misplacing components. Disconnect the battery only if you are near components with electrical connections, and never rely on the engine running while you service the driveline. Support the vehicle with jack stands on a solid frame, never a lone jack. Following these precautions minimizes risk and keeps the repair progressing smoothly.
Inspection Checklist
Start with a visual and tactile inspection of all driveline components. Look for cracked boots, torn seals, or leaking grease around CV joints and U-joints. Manually check for lateral play by gently wiggling joints; listen for grinding or clicking when you rotate the shaft by hand. Inspect the center bearing and its mounting, looking for cracks, looseness, or deteriorated rubber. Examine the shaft surface for dents or bends, and ensure flange surfaces are clean and unmarred. Remove any debris and ensure mounting points are solid before continuing. This thorough inspection helps you decide whether to repair individual parts or replace the entire shaft.
Removal and Access
With the vehicle secured, loosen the wheel lug nuts and raise the car using a floor jack. Support with jack stands and remove the wheel to access the driveshaft flange. Mark the driveshaft orientation with chalk or tape to preserve balance when reassembling. Loosen the bolts at both ends of the shaft and carefully separate the joints from the transmission/differential outputs. If the shaft is stuck, use a puller or gently pry with a plastic shim to avoid damaging mating surfaces. Keep track of all fasteners and clips for accurate reassembly.
Repair or Replace Components
Evaluate whether the issue is a worn CV joint, a failed center bearing, or a bent shaft. If the CV joint boots are cracked or grease has leaked, replace the joint and reseal. A worn center bearing often means replacement of the bearing assembly and related mountings. If the shaft shows heavy runout, bending, or balance weights are damaged, a full shaft replacement or professional rebalancing might be necessary. When in doubt, compare the cost and availability of parts against a complete driveshaft unit to minimize downtime and ensure safety.
Reassembly, Alignment, and Testing
Begin reassembly by aligning the shaft with the orientation marks made during removal. Install bolts and secure joints finger-tight, then torque to the manufacturer’s specification using a torque wrench. Recheck all fasteners for proper seating and ensure no components interfere with the exhaust, suspension, or brake lines. Reconnect any electrical connections that were removed. Lower the vehicle and torque the lug nuts to spec. Perform a careful test drive at low speed to listen for vibrations and recheck for any heat marks or leaks around the joints.
Maintenance and Longevity
Regular inspection of the driveshaft area helps catch wear before it becomes dangerous. Lubricate joints as recommended by the manufacturer and replace boots at the first sign of damage. If your vehicle sees harsh driving conditions or frequent off-road use, check the driveline more often and consider a protective shield or guard. Keep the differential and transmission housings clean and free of road debris that can abrade seals. By staying proactive, you reduce the likelihood of a roadside failure and keep the drivetrain operating smoothly.
Common Pitfalls and Pro-Tips
• Do not rush the reassembly—proper torque and clean mating surfaces prevent future failures. • Always verify the shaft is truly balanced after any major component replacement. • Use a magnetic tray and label all parts to avoid mismatches during reassembly. • If you detect persistent vibration after a repair, consider professional alignment and a dynamic balance to prevent long-term damage. Remember, a careful approach minimizes mistakes and extends the life of your driveline.
Tools & Materials
- Floor jack(Capable of lifting the vehicle; use on a flat surface)
- Jack stands(Support the vehicle securely; never rely on a jack alone)
- Wheel chocks(Place on both sides of the wheels still on the ground)
- Lug wrench or impact wrench(Loosen lug nuts before lifting; ensure wheel removal)
- Torque wrench(To re-torque bolts to manufacturer specs)
- Set of wrenches and sockets(Metric and SAE sizes; include 10-14 mm range)
- Pry bar and mallet(Gently separate joints without prying damage)
- Snap ring pliers(Remove and install snap rings on CV joints)
- Replacement joints/bearing kit(CV joint kit or center bearing as needed)
- Grease and lubricant(Pack CV joints; use vehicle-specific grease)
- Threadlocker (light)(Optional for extra bolt security)
- Gloves and eye protection(Personal protection for sharp edges and debris)
- Rags and Parts tray(Keep parts organized to avoid mix-ups)

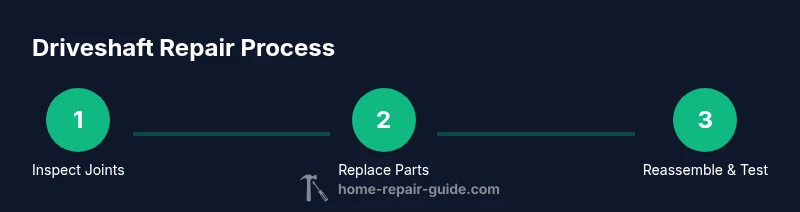

Steps
Estimated time: 3-6 hours
- 1
Prepare and secure the vehicle
Park on a level surface, engage parking brake, and chock the wheels. Loosen the lug nuts slightly before lifting. Position the floor jack under the recommended lifting point and raise the vehicle until it clears the ground.
Tip: Use wheel chocks on the opposite side of the lifted wheel to prevent rollaway. - 2
Mark orientation of the driveshaft
Before removal, mark the driveshaft and flange with chalk or tape to preserve balance during reassembly. This ensures correct alignment relative to the differential and transmission. Take a clear photo for reference as a backup.
Tip: Consistency matters; small misalignment can cause vibration after reassembly. - 3
Detach the driveshaft ends
Loosen and remove the bolts at the differential and wheel-end flanges. Carefully separate the joints, supporting the shaft to prevent it from dropping. Keep fasteners organized in labeled bags.
Tip: Support the shaft with one hand during removal to avoid bending it. - 4
Inspect components off the vehicle
With the shaft free, inspect CV joints, U-joints, boots, and the center bearing. Look for cracks, tears, grease leakage, and excessive play. Note worn parts to decide repair vs replacement.
Tip: Document wear with photos to justify part replacement decisions. - 5
Install new components if needed
Install replacement CV joints, a new center bearing, or entire shaft as required. Pack CV joints with fresh grease and reseal boots as necessary. Re-check all clips and seals for proper fit.
Tip: Follow manufacturer instructions for grease type and pack amount. - 6
Reinstall and torque fasteners
Reattach the driveshaft ends, align with the marks, and finger-tighten bolts. Torque to spec with a torque wrench, following the vehicle’s service manual. Double-check both ends for secure fit.
Tip: Apply threadlocker only if recommended by OEM; overtightening can damage parts. - 7
Balance check and initial test
Spin the shaft by hand to feel for roughness; install a balance if there is residual vibration. A professional dynamic balance may be needed for severe imbalance. Lower the car carefully and test the first short drive.
Tip: Listen for new noises and feel for vibrations at different speeds. - 8
Final safety checks and road test
Recheck all bolts after the test drive and inspect for heat, leaking seals, or abnormal noises. Reinstall protective shields if removed. Complete a second, longer test drive to confirm reliability.
Tip: If vibrations persist, stop driving and consult a professional; driveline issues can escalate quickly.
FAQ
What are the signs that a driveshaft needs repair?
Common signs include vibration at speed, clunking noises when accelerating or turning, and visible boot or joint damage. If you notice any of these, perform a closer inspection or consult a professional.
Look for vibration or clunking noises and inspect worn joints; if in doubt, get a professional check.
Can I repair a driveshaft myself at home?
Yes, many homeowners can perform basic inspections and replace worn joints or bearings with the right tools. More complex damage, such as a bent shaft or severe imbalance, may require professional service or a complete driveshaft replacement.
You can do many repairs at home if you have the tools and follow safety steps; serious damage needs a pro.
How long does driveshaft repair typically take?
Duration varies with vehicle and damage. Plan for a few hours and expect longer if you replace multiple components or rebalance the shaft.
It varies, but set aside a few hours and adjust for the parts you replace.
What tools are essential for driveshaft repair?
You’ll need basic hand tools, a torque wrench, jack stands, a floor jack, pry bars, snap ring pliers, and either a CV joint kit or a complete driveshaft bearing kit.
The basics plus a torque wrench and the right joint kit cover most repairs.
Should I replace the entire driveshaft or just worn parts?
If the shaft is bent or balance is severely off, replacement is advisable. For isolated joint wear, replacing the joint or bearing may suffice and save cost.
Replace the whole shaft if it’s badly damaged; otherwise, swap the worn parts.
Is balancing necessary after drive shaft repair?
Balancing helps eliminate vibrations caused by wear or replacement. If vibration persists after reassembly, a professional dynamical balance may be required.
Often balancing helps, but serious issues should be evaluated by a pro.
Watch Video
Key Takeaways
- Identify wear early to avoid further drivetrain damage
- Use correct torque specs and proper lubrication
- Mark orientation to preserve balance during reassembly
- Prioritize safety with proper lifting and protection
