Chip Repair Kit for Windshield: DIY Guide
Learn to fix small windshield chips using a repair kit, prevent crack propagation, and decide when replacement is needed. This comprehensive DIY guide from Home Repair Guide covers tools, steps, safety, and decision criteria for homeowners and renters.
Using a chip repair kit for windshield, you can seal minor chips and slow crack growth. The process requires a clean surface, resin, curing time, and careful adherence to the kit instructions. According to Home Repair Guide, a well-executed DIY repair can save time and money when the chip is small, flat, and away from edges.
Why windshield chips matter
Chips in the windshield are more than cosmetic flaws; they create stress points that can worsen with temperature changes, road conditions, and moisture. A small chip can expand into a long crack if not properly addressed, potentially compromising structural integrity and visibility. The goal of a chip repair kit for windshield is to fill the damaged area with resin, restore surface profile, and slow or halt crack propagation. According to Home Repair Guide, prompt, careful DIY care can be cost-effective when the chip is small, flat, and not near edges. If you drive through extreme temperature swings or rough terrain, the risk of rapid failure rises and a professional repair or replacement may be necessary. When evaluating a chip, consider size, depth, location, and whether there are multiple cracks radiating from the impact. These factors help determine whether a kit-based repair is appropriate or a full windshield replacement is warranted.
What you should know about windshield chip repair
Windshield chips are repaired by injecting a resin that fills the voids and creates a smooth surface. A well-executed repair reduces distortion and helps the protective film form a seal against moisture. A good kit should include resin, curing film or an applicator, and instructions tailored to chip type. When used correctly, the resin can restore the windshield’s optical clarity and reduce the likelihood of crack spread. Remember that not all chips are repairable; large, spreading, or edge-adjacent damage often requires professional service. The Home Repair Guide team emphasizes choosing a kit that matches your chip’s size and the vehicle’s glass thickness for best results.
Safety and prep considerations
Before starting, ensure the work area is well lit, clean, and dry. Wear gloves and eye protection to prevent contact with resin and cleaning solutions. Park the vehicle in a shaded, dust-free area to avoid contaminants landing on the resin during curing. If your kit requires a UV light, keep it at the recommended distance to avoid overheating the resin. Never attempt a repair with a cracked windshield that penetrates the adhesive layer or extends to the edge of the glass, as this is a job for a professional. Follow all manufacturer instructions for kit-specific curing times and surface prep. The key is to prepare the surface thoroughly, maintain cleanliness, and control the curing environment to achieve a durable repair.
Authority sources and best practices
For policies and safety considerations around windshield repairs, consult established sources. While DIY repair can be effective for small chips, always reference official guidance from road-safety authorities and reputable automotive publications. The following sources provide context about windshield safety and repair considerations: • National Highway Traffic Safety Administration (NHTSA) – general windshield safety guidelines. • Consumer Reports – consumer-focused reviews on repair effectiveness and vehicle safety. • Car and Driver – industry perspectives on repair versus replacement decisions. These resources help inform when a DIY repair is appropriate and when to seek professional service.
Tools & Materials
- Windshield chip repair kit (resin, curing film, and applicator)(Includes resin, curing film/strips, and an applicator. Follow the kit’s instructions exactly.)
- Isopropyl alcohol (at least 70%)(Used to thoroughly clean the chip area before applying resin.)
- Microfiber cloth(Lint-free for cleaning and drying without leaving fibers.)
- Plastic razor or deburring tool(Lightly trim any raised resin if needed after curing (per kit directions).)
- Masking tape(Optional border to keep resin contained during curing.)
- Safety gloves(Protect skin from resin; nitrile gloves are common.)
- Safety goggles(Protect eyes from splashes during application.)
- UV curing light or direct sunlight(Some kits include a UV lamp; others rely on natural sunlight. Follow the kit instructions.)

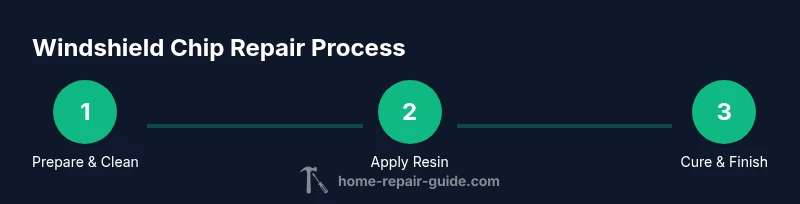

Steps
Estimated time: Estimated total time: 30-45 minutes
- 1
Prepare the work area
Park in a shaded, stable area. Gather all tools and wipe the windshield surface with a microfiber cloth dampened with isopropyl alcohol to remove dust and oils. A clean surface reduces air bubbles and improves resin adhesion.
Tip: Work on a flat surface; avoid wind or dust before and during curing. - 2
Clean and dry the chip
Dampen a microfiber cloth with isopropyl alcohol and carefully wipe the chip and surrounding area. Dry with a second lint-free cloth. Ensure there is no moisture or debris in the chip cavity before resin application.
Tip: If moisture remains, wait until the surface is completely dry before proceeding. - 3
Mask the area around the repair
If you have masking tape, apply a thin border around the chip to contain resin and prevent smudging onto intact glass. This helps maintain a clean surface and reduces the risk of resin leaking beyond the repair zone.
Tip: Keep border narrow to avoid leaving visible edges after curing. - 4
Inject resin into the chip
Apply the resin provided in the kit directly into the chip cavity using the included applicator. Fill until the chip surface is level with the surrounding glass without creating a blob on top.
Tip: Avoid overfilling and expelling air bubbles by applying steady, even pressure. - 5
Remove air bubbles and initiate curing
If your kit includes a curing film, place it over the resin to smooth and seal the surface. Cure with the provided UV light or by placing the windshield in direct sunlight for the recommended duration.
Tip: Hold the curing light at the distance specified by the kit to prevent overheating. - 6
Finish and verify
Remove the curing film or tape, wipe the surface, and inspect the repair. If a raised area remains, lightly trim with a plastic scraper and re-clean. Allow additional curing time if recommended by the kit before exposing the windshield to washing or heavy use.
Tip: Polish edges gently to blend the repair with the surrounding glass.
FAQ
Can all windshield chips be repaired with a DIY kit?
No. DIY kits work best for small, flat chips away from edges. Large, spreading cracks or those near the edge often require professional repair or windshield replacement.
DIY kits suit small chips away from edges; larger or edge cracks need a professional assessment.
Will the repair be visible after curing?
Repairs can reduce visibility of the chip, but some kits may leave a faint blemish. Proper curing and polishing can improve clarity, though a perfect invisibility is not guaranteed.
Most repairs improve appearance, but a faint mark may remain depending on the chip and curing.
Is a UV lamp required for curing?
Many kits include a curing lamp, but some use sunlight. Follow the kit instructions regarding curing time and light source.
Follow your kit’s instructions; some rely on UV light, others on sun exposure.
How long does a windshield repair last?
Durability depends on the chip size, location, and driving conditions. A properly performed repair can last for years, but impacts or stress can still cause future issues.
A proper repair can last years, but driving stresses may affect longevity.
What safety steps should I take during DIY repair?
Wear gloves and goggles, work in a well-ventilated area, and avoid skin contact with resin. Keep the workspace clean and follow the kit’s safety directions.
Wear protection and follow the kit's safety directions.
When should I replace rather than repair?
If the crack is long, spider-like, spreads from the edge, or compromises structural integrity, replacement is usually safer and required by many jurisdictions.
Replacement is safer for long or edge cracks.
Watch Video
Key Takeaways
- Assess chip size and location before starting.
- Prepare a clean, dry surface and follow kit instructions precisely.
- Cure completely; avoid washing or stressing the area during curing.
- Know when to DIY and when to replace—edge or large cracks require professional care.
- Document the repair for future reference and car maintenance records.
