Transfer Case Repair: A Practical DIY Guide
Learn how to diagnose, repair, and maintain a transfer case with practical, safe steps. From common leaks to gear wear, this Home Repair Guide tutorial covers tools, steps, and maintenance tips.
This guide helps homeowners and DIY enthusiasts diagnose and repair common transfer case issues on 4WD and AWD vehicles, from leaks to gear wear. You will learn safe inspection steps, when to reseal or replace parts, and how to maintain the transfer case for long-term reliability. Gather basic hand tools, a jack and stands, a torque wrench, drain pan, and a service manual before you begin.
Understanding the transfer case and why it fails
The transfer case is a critical component that directs torque between the transmission and the front and rear axles in four-wheel drive systems. When it fails, you may notice grinding, whining, or leaks. According to Home Repair Guide, most problems originate from worn seals, lubrication gaps, or damaged chain components. Different models use various chain and gear configurations, but the basic failure modes are similar: seal leaks, gear wear, and improper lubrication. By learning how the transfer case functions, you can better diagnose issues and decide whether resealing, gear replacement, or a full case rebuild is needed. This section lays the groundwork for safe, effective repair and helps you decide whether a DIY fix is realistic given your skill level and tools.
For homeowners and renters tackling their own repairs, the key is to distinguish quick fixes from enduring solutions. Home Repair Guide analysis shows that many leaks stem from the output shaft seal or fill plug, while noise often signals worn gears or a stretched chain. With this knowledge, you can plan a targeted approach rather than attempting a full teardown when it isn’t necessary.
Safety precautions before you begin
Safety comes first when working on a vehicle’s drivetrain. Always work on a flat surface with the parking brake engaged, wheels chocked, and the vehicle supported by jack stands. Disconnect the battery to prevent accidental starts and spills. Use eye protection, gloves, and sturdy footwear. Keep a drain pan ready for fluids and dispose of used oil according to local regulations. Never rely on a jack alone to hold a raised vehicle, and avoid working under a raised vehicle if you’re uncertain about support.
A clean workspace reduces mistakes. Label fasteners as you remove them, photograph steps for reference, and work in a well-ventilated area. If you encounter unfamiliar torque specifications or fasteners, pause and consult the service manual. These precautions minimize risk and protect both you and the vehicle during a transfer case repair.
Symptoms that indicate a transfer case issue
Common signs of transfer case problems include difficulty engaging 4WD, grinding or clunking noises when shifting, and visible fluid leaks around the case. A change in driving feel—such as binding or unexpected shift points—can also indicate internal wear or a failing shift mechanism. If the transfer case is overheating or producing metallic debris in the oil, stop driving and inspect the unit promptly. By noting symptoms early, you can tailor repairs to the most likely failure mode and avoid unnecessary disassembly.
Remember: not every symptom requires a full rebuild. In many cases, resealing or replacing a worn seal or bushing can restore function without a complete teardown.
How to plan a repair: assessment, parts, and skill level
Start with the service manual for your vehicle and verify the exact transfer case model. Decide whether resealing, bearing or chain replacement, or a full case rebuild is appropriate based on symptoms, oil condition, and torque specifications. Create a parts list with OEM-style seals, gaskets, and any required bearings. If you are uncertain about the correct parts, contact a reputable parts supplier with your vehicle’s year, make, and model. Assess your skill level honestly; some repairs require special tools or a hydraulic press. Plan time for cleanup and leaks, and budget for potential replacements where wear is evident. This planning stage saves time and reduces the risk of incomplete repairs.
A cautious, well-documented plan helps you avoid mistakes and ensures you have the necessary tools and spare parts before you start.
Common repair tasks and recommended approaches
The most common DIY tasks are resealing and gasket replacement, replacing worn seals on input or output shafts, and addressing a damaged chain or worn gears. For most reseals, you’ll remove the transfer case cover, clean mating surfaces, apply gasket material or sealant as directed, and reseal with new gaskets. Replacing a chain or gears is more involved and may require precise timing and torque values; in some cases, professional service is advised. Always check the torque specs, bolt patterns, and fluid type before reassembly. If metal debris or heavy wear is found inside, the case may require more extensive repair or replacement. This section covers when to DIY and when to seek expert help.
Throughout the repair, document your steps and compare them with the service manual to avoid common mistakes.
Post-repair checks and maintenance tips
After reassembly, refill with the manufacturer’s recommended transmission fluid or transfer case oil to the specified level. Check for leaks by running the engine briefly and inspecting seals again; a low or leaking seal is easier to catch before a road test. Perform a careful test drive in multiple drive modes (2WD, 4WD, high/low range if applicable) to verify engagement and observe for abnormal noises. Regular maintenance—such as periodic fluid checks and changing the fluid at recommended intervals—extends life and reduces future issues. Keep records of service dates and part numbers for future reference.
Quick maintenance plan to extend life
Follow a simple maintenance routine: check the transfer case fluid level every 3,000–5,000 miles, inspect seals during routine oil changes, and reseal or replace worn components promptly. Using the correct lubricant and keeping the unit clean helps prevent early wear. A proactive approach reduces the likelihood of major failures and saves money over time.
Tools & Materials
- Service manual for your vehicle(Manufacturer-recommended manual or factory workshop manual)
- Floor jack(High enough clearance for access to the transfer case)
- Jack stands(Sturdy support for safety; never rely on a jack alone)
- Wheel chocks(Prevent wheel movement during work)
- Metric socket set and wrenches(Sizes specified in service manual)
- Torque wrench(Reinstall fasteners to manufacturer torque)
- Drain pan(Catch old transfer case fluid)
- Gasket scraper and cleaning brushes(Prepare mating surfaces)
- Seal kit (input/output seals)(Use OEM or equivalent quality seals)
- Gasket sealant or adhesive as specified(Follow manual instructions)
- Transfer case fluid appropriate for your vehicle(Check viscosity and spec)
- Magnetic drain plug replacement if applicable(Some models use magnetic plugs)
- Rags and solvent for cleaning(Keep parts free of grit)
- Safety glasses and gloves(Personal protective equipment)

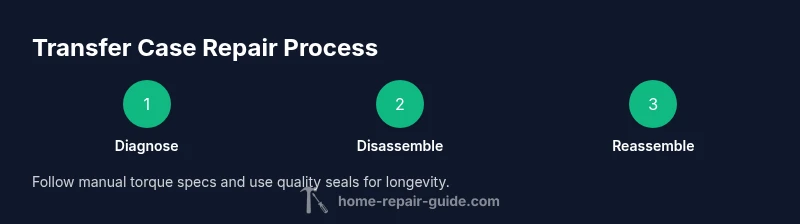

Steps
Estimated time: 2-4 hours
- 1
Secure the vehicle and access the transfer case
Chock the wheels, lift the vehicle, and support with jack stands. Locate the transfer case behind the transmission and ensure there is enough working space to access the cover and seals. This setup reduces the risk of slips and provides a stable workspace for disassembly.
Tip: Use wheel chocks on both sides and confirm the stands are on a solid, level surface. - 2
Drain old fluid and remove the case cover
Place the drain pan, remove the fill and drain plugs, and allow the fluid to drain completely. Remove the transfer case cover bolts in a crisscross pattern to avoid warping the cover or mating surfaces. Clean the cover and the mating surface before inspecting internal parts.
Tip: Drain while the fluid is warm but not hot to prevent burns; wear gloves. - 3
Inspect seals, gaskets, and oil condition
Look for oil with metal shavings, dark discoloration, or a gritty texture. Check input/output seals for leaks and inspect the chain or gears for wear. Photograph or mark components to aid reassembly and ensure you have the right orientation.
Tip: If you see metal flakes, document locations and plan for replacement; do not reuse worn parts. - 4
Disassemble the transfer case to inspect internals
Carefully remove internal fasteners and components to access the chain, gears, and bearings. Inspect for wear, broken teeth, and misalignment. Maintain organization of parts to ensure correct reassembly and avoid crossing reference marks.
Tip: Lay parts out in the order removed to simplify reassembly. - 5
Replace worn parts and reseal the case
Install new seals and gaskets, replace worn bearings or chain if needed, and apply sealant per manual. Reassemble the case following the manual’s torque specs and pattern; ensure seal surfaces are clean and dry before reassembly.
Tip: Double-check all seals and avoid overtightening; use a torque wrench for precision. - 6
Refill, test, and verify
Fill with the recommended fluid to the correct level, reinstall the cover, and run the engine to allow the fluid to circulate. Test drive in multiple drive modes and listen for abnormal noises or leaks. Recheck fluid levels after the test run.
Tip: Allow the system to reach operating temperature before final level check.
FAQ
Do I need to remove the transfer case from the vehicle to repair it?
Some tasks can be completed with the case in place, such as resealing or replacing external seals. More extensive internal work may require removal and supported access. Refer to your service manual for vehicle-specific guidance.
Some jobs can be done with the case in place, but internal repairs often require removal. Check the manual before proceeding.
What are the most common transfer case problems?
Leaking seals, worn gears, damaged chains, and poor lubrication are the most frequent issues. Fluid contamination and overheating can accelerate wear and lead to expensive repairs.
Common problems are leaks, worn gears, and chain wear, often caused by old or contaminated fluid.
What tools are essential for transfer case repair?
A basic set includes a floor jack, jack stands, metric sockets, torque wrench, seal pullers, gasket scraper, and the correct transfer case fluid. A service manual is invaluable for torque specs and procedures.
Essential tools are a floor jack, stands, sockets, torque wrench, seal tools, and the right fluid per the manual.
How long does a transfer case repair take?
For common reseal tasks, plan for a few hours. More complex repairs—like bearing or gear work—could require a full day or more and professional service.
Most reseal jobs take a few hours; full gear or bearing work may take longer.
Is it safe to drive with a faulty transfer case?
Driving with a bad transfer case can cause further damage to the drivetrain and lead to loss of control. Do not drive long distances; have the unit inspected and repaired promptly.
No—driving with a faulty transfer case can cause serious damage. Seek prompt repair.
Watch Video
Key Takeaways
- Inspect seals and lubrication before disassembly.
- Use correct torque specs and fluid type.
- Document steps and parts for accurate reassembly.
- Follow safety practices to avoid drivetrain injury.
- The Home Repair Guide team emphasizes safe, measured repairs for longevity.
