Whirlpool Ice Machine Repair: Step-by-Step Guide
A practical, safety-focused guide to diagnosing and repairing Whirlpool ice machines at home. Learn common problems, tools, replacement parts, and maintenance to restore fresh, reliable ice.
This guide helps you diagnose and repair common Whirlpool ice machine issues by verifying the water supply, cleaning the ice maker, and replacing worn components. You’ll follow a safety-focused, step-by-step approach with a clear tools list, practical tips, and realistic time estimates to restore ice production without unnecessary service calls.
Whirlpool Ice Maker Common Problems
Whirlpool ice makers are built for reliability, but even well-maintained units can exhibit issues over time. The most frequent problems fall into a few clear categories: water supply problems (kinks, low pressure, or disconnected lines), ice mold jams or mineral buildup, sensor or switch failures, and minor electrical glitches that affect harvest cycles. According to Home Repair Guide, many common ice-maker faults originate from simple clogs or worn seals rather than a total failure of the unit. Recognizing the pattern—no ice, slow ice production, small or irregular cubes, or water leakage—helps you target the right fix. This section outlines the typical symptoms and practical, homeowner-friendly remedies that avoid unnecessary part replacement.
Whirlpool Ice Maker Common Problems
Whirlpool ice makers rely on consistent water supply, accurate temperature sensing, and clean ice molds. When any one of these systems falters, you’ll notice changes in ice production or quality. Common symptoms include: no ice production, ice that’s slow to harvest, ice cubes that are hollow or misshapen, water leaks around the ice maker, or odd noises during the harvest cycle. Before jumping to conclusions, perform a quick, non-destructive check: ensure doors are sealed, the ice bin is correctly installed, and the kitchen’s water valve is fully open. If the problem persists, then systematically test the water line, valve, mold, and sensors. The goal is to pinpoint the root cause with minimal disassembly and avoid unnecessary part swaps.
Whirlpool models vary, but the basic principles stay the same: reliable water supply, clean ice mold, and accurate control signals. Use a methodical approach to diagnose symptoms, document findings, and proceed with safe repairs. This block sets the stage for the hands-on steps that follow in the guide.
Tools & Materials
- Phillips head screwdriver(For removing ice maker cover screws)
- Flat-head screwdriver(For prying clips and accessing panels)
- Nut driver set(For mounting bolts and ice maker housing)
- Needle-nose pliers(For clips and small hose clamps)
- Multimeter (digital)(Test electrical continuity and coil resistance)
- Were cleaning supplies(Mild dish soap, white vinegar solution)
- Soft microfiber cloths(For cleaning and drying parts)
- Bucket or tray(Catching water during disassembly)
- Gloves and safety glasses(Personal protective gear)
- Replacement parts (as needed)(Ice mold kit, inlet valve, or sensor should be OEM if replacement is necessary)
- Towels or absorbent rags(Clean up spills and dry surfaces)
- Distilled water or purified rinse(Rinse after cleaning; helps prevent mineral residue)

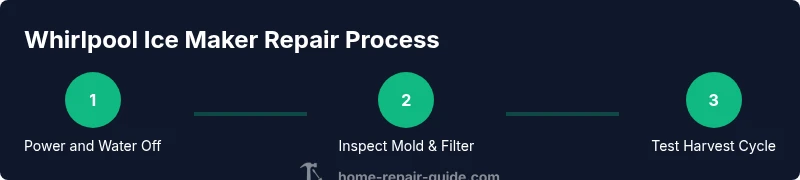

Steps
Estimated time: 90-120 minutes
- 1
Unplug and shut off water supply
Power down the unit at the wall outlet and close the dedicated water valve to prevent shocks or leaks. This step reduces the risk of electric shock and water damage during disassembly. If you’re unsure where the valve is, locate the kitchen water shutoff or the valve under the sink and turn it clockwise until it stops.
Tip: Double-check that the unit is completely unplugged and the valve is fully closed before touching any internal components. - 2
Remove ice bin and ice maker cover
Take out the ice bin to access the ice maker assembly. Remove screws or clips securing the cover, then gently lift the cover to expose the ice mold and sensing components. Keep screws organized so you can reassemble later.
Tip: Take a photo of clip placements before removal to aid during reassembly. - 3
Inspect water line for kinks or disconnections
Trace the supply line from the wall valve to the back of the ice maker. Look for kinks, crushed sections, or loose connectors. If you detect a leak or loose hose, tighten connections and straighten the line. Do not force fittings; replace damaged hoses as needed.
Tip: If the line is stubbornly kinked, consider gently routing it away from heat sources to prevent future deformation. - 4
Clean the ice mold and interior
Remove the ice mold assembly if possible. Soak the mold in a mild vinegar solution (1:1 with water) for 5–10 minutes to dissolve mineral scale. Rinse thoroughly with clean water, then wipe dry with a microfiber cloth. This helps restore proper ice cube formation and harvest cycles.
Tip: Do not use bleach or harsh solvents; they can leave residues that affect taste and safety. - 5
Check and replace the water filter (if present)
If your Whirlpool model uses a water filter, remove the old cartridge and install a new one following the manufacturer’s instructions. Prime the new filter by running water through it before reinstalling.
Tip: Always use the manufacturer-recommended filter to ensure optimal performance and water quality. - 6
Inspect water inlet valve and solenoids
Look for signs of wear on the inlet valve and its wiring. If you have a multimeter, test for coil continuity according to your model’s service manual. Unplug power before testing, and replace a failed valve with an OEM part.
Tip: A sluggish valve often mimics a low-water condition; replacement is usually more reliable than re-soldering connections. - 7
Test ice maker sensor and thermostat
Identify the sensor that monitors the ice mold temperature and the thermostat controlling harvest timing. If readings indicate out-of-spec values, test or replace the sensor or thermostat per service specs. A faulty sensor can prevent harvest cycles altogether.
Tip: Only replace with identical part numbers to maintain proper cycle timing. - 8
Reassemble and run a harvest cycle
Reinstall the ice mold and cover, reconnect the water line, and restore power. Run a manual harvest to test ice production. Listen for normal cycling and check for leaks as the unit fills and harvests.
Tip: Use a towel beneath the unit during first tests to catch any drips. - 9
Check control board and electrical connections
Inspect the control board connections for any loose wires or signs of burn marks. If you notice damaged connectors, repair or replace wiring in accordance with the service manual. Ensure all plugs are snug before the next test cycle.
Tip: Avoid touching sensitive electronics with wet hands; dry hands before re-engaging connectors. - 10
Perform a full test cycle and monitor performance
Allow several harvest cycles to verify consistent ice production and cycle timing. Check for abnormal noises, intermittent stopping, or ice quality issues. If issues persist, proceed to part replacement rather than repeated repairs.
Tip: Document cycle times and ice quality for future reference. - 11
Replace worn components as needed
If the ice maker continues to underperform after cleaning and basic tests, replace likely wear items such as the ice mold kit, inlet valve, or sensor. Confirm compatibility with your Whirlpool model before purchasing.
Tip: Prefer OEM parts to maintain performance and warranty compatibility. - 12
Final safety check and routine maintenance
Recheck all connections for leaks and ensure the unit is level. Establish a routine maintenance plan: regular cleaning every 1–3 months and periodic filter checks to sustain ice quality and efficiency.
Tip: Set a maintenance reminder to stay on track and prevent buildup.
FAQ
Can I repair a Whirlpool ice machine myself, or should I hire a pro?
Many common issues, like clogs, mold buildup, and simple wiring checks, can be repaired at home with proper safety. Complex electrical or refrigerant problems should be handled by a licensed technician.
You can handle basic cleaning and part replacements, but avoid refrigerant or sealed-system work. If in doubt, consult a pro.
What basic tools are needed for Whirlpool ice maker repair?
A basic toolkit plus a multimeter, cleaning supplies, and spare parts if you suspect a worn component. Always use safety gear and follow the model-specific service manual.
You’ll need a screwdriver set, a multimeter, cleaning supplies, and replacement parts as needed.
How do I know if the ice maker needs a new water valve?
If the valve shows continuity issues on a test, or the unit fails to fill consistently after cleaning, a replacement valve is often the fix. Verify compatibility with your Whirlpool model.
If the valve coil is bad, replace it to restore proper water flow.
Are there safety steps unique to Whirlpool ice makers?
Always unplug before disassembly, shut off the water supply, and avoid open flames or solvents near electrical components. Follow model-specific safety instructions in the manual.
Unplug, shut off water, and wear safety gear. Follow the manual for additional precautions.
What maintenance helps prevent future problems?
Regular cleaning of the mold and interior, periodic filter changes, and careful inspection of hoses and connections can prevent mineral buildup and jams.
Clean regularly, swap filters on schedule, and check hoses for wear.
Watch Video
Key Takeaways
- Diagnose water, mold, and sensor issues first
- Clean and maintain ice maker surfaces regularly
- Use OEM parts for reliability and warranty compliance
- Test cycles thoroughly before declaring a fix successful
- Know when to call a pro
