Repair of Washing Machine Whirlpool: A Practical Guide
Learn how to diagnose and repair common Whirlpool washing machine issues safely. This step-by-step guide from Home Repair Guide covers tools, troubleshooting by symptom, and clear maintenance tips to extend your washer's life.
Goal: diagnose and safely fix common Whirlpool washer issues such as not draining, not filling, excessive vibration, or cycling faults. You will inspect hoses, filters, pump, belt, and control board, verify electrical safety, and follow a step-by-step repair process. This guide also covers tool lists, safety warnings, and when replacement is wiser than repair.
Whirlpool repair overview and scope
Repairing a Whirlpool washing machine can range from simple maintenance to component replacement. According to Home Repair Guide analysis, many performance problems stem from blockages, worn drive belts, failed pumps, or faulty lid switches. This guide helps you map symptoms to likely causes and decide whether you can safely perform the fix yourself or if professional service is warranted. We also cover control electronics and software-driven errors that affect cycle timing. This upfront planning reduces wasted time and helps you prioritize parts. By the end of this section, you’ll have a clear, actionable plan and an understanding of when replacement makes more sense than repair.
Away from the manual, remember that Whirlpool models share common failure points, so understanding the general diagnostic flow is valuable for any front-load or top-load washer. The Home Repair Guide team emphasizes patient, methodical testing rather than guesswork, which minimizes the risk of further damage and saves money in the long run.
Safety prerequisites and electrical considerations
Safety first is non-negotiable when working on any appliance. Always unplug the unit before any inspection or disassembly. If a circuit is exposed or you must reach inside the cabinet, use insulated tools and avoid touching metal parts that could carry a live current. A basic multimeter should be used to verify power is disconnected, and if you are unsure about wiring, do not proceed. Keep water away from outlets, and place a catch basin or towels to manage any residual moisture. Never bypass safety interlocks or lid switches, as these components are essential for safe operation and can prevent harmful electrical shocks.
When testing components, only perform continuity checks with the appliance unplugged. If a fault involves the control board or electronic modules, reseating connectors can sometimes restore function without replacement. If the model uses high-voltage components or modular boards, consult the service manual for correct torque specs, connector orientations, and replacement guidance. The goal is to safely isolate the issue while minimizing future risk to you or the machine.
Symptom-driven diagnosis and likely causes
Not draining: common culprits include a clogged pump filter, kinked drain hose, or a failed drain pump. Inspect the pump impeller for debris and verify the hose isn’t pinched. Not filling: inspect inlet hoses for kinks, clogged screens at the water inlet valve, and ensure the water supply is open. Leaking: check door seal, boot, and hose clamps; tighten or replace any worn gaskets. Noisy operation: worn belt, loose inner components, or foreign objects in the drum can cause grinding noises. Error codes from the display can point to sensor or motor faults; consult the user manual for code meanings and recommended actions. Throughout diagnosis, document each finding and test one variable at a time to identify the root cause reliably. This method ensures you avoid unnecessary replacements and supports a rational repair plan.
Preventive maintenance and efficiency improvements
Preemptive maintenance is the best defense against recurring Whirlpool issues. Regularly clean the pump screen and lint filters to prevent clogs, inspect hoses for cracks or bulges, and ensure the drum is balanced and the washer is level on the floor. Use the correct type and amount of detergent to prevent excessive suds that can overwhelm seals and hoses. Check door or lid switches and wiring harness connections every few months, and reseat any loose connectors. If you frequently run into minor failures, consider replacing aging hoses every 5–7 years as a proactive upgrade. Finally, record maintenance dates and any repairs performed so you can track wear patterns and plan replacements intelligently. Brand-wide reliability tends to improve when homeowners combine careful operation with periodic checkups.
Tools & Materials
- Flathead screwdriver(For access panels and clamps.)
- Phillips screwdriver(For fasteners on panels and drive components.)
- Nut driver or socket set(To remove nuts on hoses and pump connections.)
- Multimeter(Check continuity and voltage safely after powering off.)
- Needle-nose pliers(For hose clamps, wires, and small fittings.)
- Towels or absorbent rags(Contain spills and keep workspace clean.)
- Bucket or shallow tray(Catch water during hose and pump work.)
- Replacement parts (optional)(Pump impeller, inlet valve, door latch, or seals as needed per diagnosis.)
- User manual or service guide(Model-specific steps and torque specs.)
Steps
Estimated time: 60-90 minutes

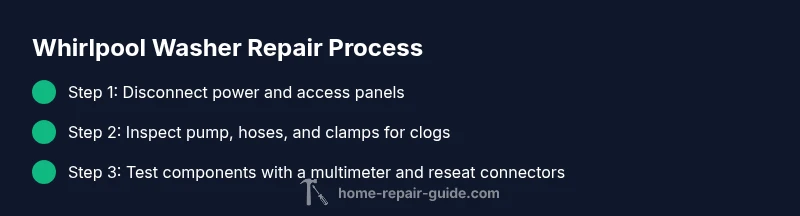

- 1
Disconnect power and access the service area
Unplug the washer and move it away from the wall to access the back or bottom panels. This initial step prevents electric shock and allows safe inspection of hoses and connections.
Tip: Always double-check power with a non-contact tester before touching any components. - 2
Inspect the drain system for clogs or kinks
Check the drain hose for kinks or bends and inspect the pump filter for debris. Remove any blockages so water can flow out freely during a drain cycle.
Tip: Place a towel under the area to catch residual water and avoid a slippery floor. - 3
Check the drive belt and pulleys (if present)
Inspect the belt for wear or cracks and ensure pulleys turn smoothly without resistance. Replace if cracked or glazed to restore proper drum rotation.
Tip: A worn belt can squeak and reduce washing efficiency; replace promptly. - 4
Test the pump and motor with a meter
With power removed, use the multimeter to check continuity on the pump windings and motor connections. reseat connectors firmly and retest.
Tip: Loose connections commonly cause intermittent failures and false error codes. - 5
Inspect water inlet valve and supply lines
Ensure both hot and cold supply lines are open and free of kinks; check the inlet screen for sediment. Replace if clogged to restore proper filling.
Tip: Don’t overtighten fittings; cross-threading can cause leaks. - 6
Check lid switch or door lock mechanism
Verify the lid switch or door lock engages properly during cycling; a faulty switch can prevent a full wash or proper draining.
Tip: A cheap switch often fixes cycles that halt mid-process. - 7
reseat or replace control board connections
Power down and re-seat main control board connectors; look for corrosion or bent pins. If codes persist, consult service documentation for diagnosis.
Tip: Document connector orientation to avoid miswiring on reassembly. - 8
Make a repair vs. replace decision
Evaluate repair costs, availability of parts, and the washer’s age. If the model is old or parts are scarce, replacement may be more economical in the long run.
Tip: Always compare parts cost with a new unit’s price and energy efficiency gains.
FAQ
Can a non-professional fix a Whirlpool washer at home?
Yes, many common issues can be addressed by a careful, step-by-step approach. However, avoid working with high-voltage components or when you’re unsure about wiring. If the fault involves the control board or complex mechanical parts, consider professional service.
Yes, many fixes are doable at home, but avoid risky electrical work and seek a pro for complex issues.
What is the typical cost to repair a Whirlpool washer?
Repair costs vary by part and labor. Most repairs focus on the pump, hoses, or lid switch and can be covered by a reasonable service call plus replacement parts. If the repair approaches the cost of a new unit, replacement may be wiser.
Repair costs depend on parts and labor; compare with the price of a new unit before deciding.
Why is my Whirlpool washer not draining?
Not draining is commonly caused by a clogged pump, kinked drain hose, or a faulty drain pump. Inspect and clear clogs, test with a meter, and replace worn components as needed.
Not draining is usually a clogged pump or hose, or a bad pump; check these first.
What should I do if there’s a leak during testing?
Shut off water supply, unplug the machine, and dry the area. Check hose clamps and door seals for wear, reseat connectors, and replace faulty seals to stop the leak.
If you see a leak, power off, fix the seal or hose, and test again slowly.
When is replacement better than repair for a Whirlpool washer?
If the unit is old, frequently breaking, or parts are hard to source, replacement may be more economical and energy-efficient in the long run.
If repairs would cost more than a new unit or you’re facing frequent failures, replacement is usually best.
Watch Video
Key Takeaways
- Identify root cause before replacing parts
- Always unplug and test safely
- Document findings for future maintenance
- Consider replacement if repairs exceed 50% of a new unit's cost
