Whirlpool Cabrio Dryer Repair: A Step-by-Step Guide
Learn to diagnose and repair common Whirlpool Cabrio dryer problems with a practical, safety-first approach. This Home Repair Guide tutorial covers no-heat issues, drum not turning, noisy operation, tool lists, step-by-step actions, and maintenance tips to keep your appliance running reliably.
By following this Whirlpool Cabrio dryer repair guide, you will diagnose and fix common problems such as no heat, drum not turning, and excessive noise. You’ll learn how to safely power down, test components with a multimeter, and replace worn parts or vents. This practical, step-by-step approach helps homeowners save money while restoring reliable operation.
Understanding the Whirlpool Cabrio Dryer: Common Problems
Whirlpool Cabrio dryers are reliable, but like any appliance they develop faults. In many Cabrio models, the most frequent issues involve no heat, the drum not turning, or unusual noises. According to Home Repair Guide, these symptoms often trace back to simple wear parts such as the drum belt or electrical fuses, rather than a full appliance failure. By understanding these patterns, you can triage repairs quickly and avoid unnecessary parts replacements. In addition, inspect the lint screen and vent system for blockages that reduce airflow and cause overheating. The Cabrio’s front-load design means the belt-driven drum is central to operation; wear on the belt or a stretched belt leads to slipping and no rotation. Electrical faults, such as a blown thermal fuse, can cause no-heat conditions even when the drum spins. A systematic approach—check power, test components, and verify airflow—saves time and money.
Safety First: Power, Grounding, and Venting
Safety is non-negotiable when repairing a Whirlpool Cabrio dryer. Always unplug the unit before any inspection or disassembly. For extra safety, switch off the circuit breaker serving the dryer and wait a few minutes for residual charges to dissipate. Wear protective gloves and eye protection, use a well-lit workspace, and keep a magnetized tray to organize screws. Confirm the vent path is clear; a clogged vent can cause overheating and damage components. If you smell burning or notice melted insulation, stop and consult a professional. The Home Repair Guide team emphasizes safety and proper venting as foundational steps that protect you and your home.
No Heat Diagnosis: Thermal Fuses, High-Limit Thermostats, and Heating Elements
No heat is a common Cabrio symptom and often stems from a failed thermal fuse, a blown high-limit thermostat, or a faulty heating element. Start by unplugging the dryer and accessing the back panel to locate the heating circuit. Use a multimeter to test for continuity; if the fuse shows an open circuit, it needs replacement. The high-limit thermostat should also show continuity when cold and may appear blistered or damaged if the unit overheated. The heating element should present measurable resistance; if it’s open, replace it. After testing, replace any defective parts with compatible Cabrio components and reassemble. Ensure the exhaust path is clear before testing heat again to prevent false positives caused by restricted airflow.
Drum Not Turning: Belts, Idler Pulleys, and Motor Issues
If the drum doesn’t rotate, the belt is often the first culprit. Inspect the belt for cracks, fraying, or glazing and replace it if worn. Check the idler pulley for smooth operation and listen for excess play or grinding noises. A slipping or seized motor can also prevent drum rotation; test by manually rotating the drum with the belt removed to feel for roughness. If the motor seems weak or hot, it may require replacement or professional servicing. Always support the drum during belt inspection to avoid skinning fingers or dropping components.
Noisy Dryer: Bearings, Rollers, and Vents
Loud operation typically points to worn drum rollers, bearings, or a worn belt. Inspect each roller for flat spots and smooth rotation; replace if you hear squeaking or feel roughness. Check the drum glides and front felt seals for wear, which can cause percussion-like noise. A rattling noise during operation can indicate loose screws or hardware; tighten as needed. Don’t overlook venting: lint buildup along with restricted ducts amplifies noise and impedes performance. Clean the vent path thoroughly and ensure exterior vent flaps open freely.
Testing with a Multimeter: Continuity and Resistance
A proper diagnosis relies on testing electrical components with a multimeter. Set the meter to continuity or resistance (ohms) as appropriate. Test the thermal fuse and high-limit thermostat for continuity in-circuit when the dryer is powered down. For heating elements, measure resistance across the element terminals; a reading of open circuit indicates a failed element. Check the belt switch circuit by testing door switch continuity to verify the door is not interrupting power. Document readings for record-keeping and future maintenance.
Replacing Common Parts: Belts, Thermostats, and Heating Elements
Be prepared to replace the belt, thermal fuse, high-limit thermostat, or heating element if tests indicate a fault. Always purchase Cabrio-compatible parts that match your model number. When installing a new belt, route it correctly around the motor and idler pulley to avoid tension mismatches. Install thermostats and fuses with the correct orientation and ensure all electrical connectors are secure and dry. Reassemble with care, paying attention to wiring harness routing to avoid pinched wires. Finally, re-seat the drum and panel and verify that the door latch activates correctly.
Safety Check and Final Test: After Reassembly and Vent Cleaning
With the unit reassembled, restore power and run a short test cycle with a small load to observe heat generation, drum movement, and noise level. Watch for unusual smells, smoke, or sparks. If heat is inconsistent or there is a burning odor, power down immediately and re-check the heating circuit and vent path. Cleaning the lint screen and vent thoroughly reduces overheating risk and improves efficiency. This final check helps ensure the repair is complete and safe.
Maintenance to Prevent Future Breakdowns
Preventative maintenance extends the life of a Whirlpool Cabrio dryer. Establish a simple routine: inspect the drive belt every 6–12 months, clean the lint screen after every load, and schedule a vent inspection at least annually. Keep a spare belt and a small parts kit on hand for quick fixes. Periodically run the dryer empty on a high-heat cycle to identify any emerging issues early. Regular maintenance reduces unexpected failures and keeps performance steady.
Authoritative Sources and References
For safety guidelines and appliance maintenance best practices, you can consult government and educational resources that discuss general appliance safety and energy efficiency. These sources provide foundational guidance that complements hands-on repair steps and helps ensure you work within recommended standards.
Tools & Materials
- Phillips head screwdriver (Philips #2)(For panel screws and belt cover screws)
- Flat-head screwdriver(For prying panels gently and edge lifting)
- Nut driver or socket set(For securing belt wheels and motor mounts)
- Multimeter(For continuity and resistance tests)
- Replacement drum belt(Kevlar-reinforced recommended; ensure correct length)
- Thermal fuse(Match Cabrio model; carry spare)
- High-limit thermostat(Verify compatibility with Cabrio model)
- Heating element assembly(Replace only if tests indicate a fault)
- Vacuum with nozzle or lint brush(Clear lint and dust from vents and interior)
- Work gloves(Protect hands during disassembly)

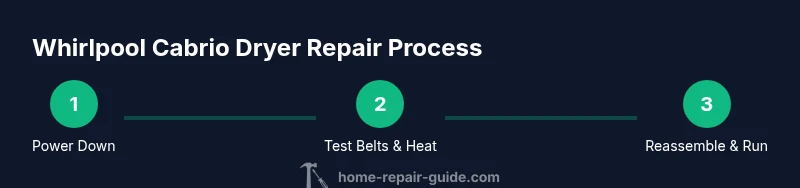

Steps
Estimated time: 60-90 minutes
- 1
Power down and relocate
Unplug the dryer from the wall and switch off the circuit breaker serving the unit. Wait a few minutes for any stored charge to dissipate. Move the dryer slightly away from the wall to gain access to the back panel and vent. This initial safety step prevents electric shock and makes the task safer.
Tip: Use a non-slip mat and keep track of the cord and plug location. - 2
Remove front panel to access components
Remove the screws holding the front panel or access panel per your Cabrio model. Gently pry the panel away to expose the belt path, drum, and heat circuit. Take photos before removing connectors so reassembly is straightforward.
Tip: Label wires if you disconnect any harnesses. - 3
Inspect drum belt for wear
Carefully inspect the drum belt for cracks, glazing, or fraying. A worn belt is the most common driver of a drum that won’t turn. If damaged, replace with the correct belt length for your Cabrio model.
Tip: Handle the belt gently to avoid tearing the belts adhesive or fabric. - 4
Check belt tension and idler pulley
With the belt removed, rotate the idler pulley and motor pulley to ensure smooth movement without grinding or resistance. Replace a seized or bent pulley and ensure belt tension is appropriate when reinstalled.
Tip: A loose belt reduces spin efficiency; a belt that's too tight can stress bearings. - 5
Test drum rotation and motor drag
Manually spin the drum with the belt removed to check for bearing roughness or obstruction. If it drags or stalls, inspect bearings and rollers and plan replacement as needed.
Tip: Support the drum during tests to prevent it from dropping. - 6
Test door switch and power path
With the cover still off, use a multimeter to test the door switch for continuity when closed. Check the thermal fuse circuit path for breaks that could block heat or power flow.
Tip: If the door switch fails, replace it before proceeding with heating tests. - 7
Test heating circuit components
Test the thermal fuse and high-limit thermostat for continuity. Inspect the heating element for visible damage and measure resistance; an open element indicates failure. Replace faulty components and reassemble as required.
Tip: Always test with the vent path clear to avoid overheating during tests. - 8
Replace faulty parts and verify compatibility
Install new belt, fuse, thermostat, or heating element as indicated by tests. Ensure all connectors are dry and firmly seated. Keep track of part orientation and wiring to prevent misassembly.
Tip: Double-check that the parts are Cabrio-compatible for your model. - 9
Reassemble and secure the unit
Reattach the front panel and belt as originally configured. Reconnect wiring and secure screws. Confirm the panel sits flush and the door latches properly.
Tip: Take a final check to ensure nothing is pinched or loose. - 10
Run a test cycle and confirm vent health
Power the unit and run a short test cycle with a small load. Observe heat, rotation, and noise. Inspect the vent for airflow and ensure exterior vent flaps operate freely.
Tip: If heat is uneven, re-check connections and vent path for blockages.
FAQ
Can I repair a Whirlpool Cabrio dryer myself?
Yes, many fixes are DIY-friendly when you have the right tools and follow safety steps. For complex electrical issues or gas models, seek a professional.
Yes, many repairs are doable at home if you follow safety steps and use the right tools.
What are the most common Cabrio dryer failures?
No heat, drum not turning, and loud operation are typical symptoms. They are usually caused by belt wear, blown fuses, or worn bearings.
Common failures include no heat, drum not turning, and loud operation.
Is it safe to bypass the thermal fuse to test heat?
No. Do not bypass safety devices. If the fuse is open, heat will be blocked and risk of fire remains. Replace the fuse.
Never bypass safety devices; replace failed parts.
How do I test the heating element for continuity?
Power down, access the element, set the meter to ohms, and measure across the terminals. If there is no continuity, the element is faulty and should be replaced.
Set your meter to ohms and test the heating element for continuity.
How long does a typical repair take?
Most fixes take about an hour or two, depending on the fault and your familiarity with appliance repairs.
Most repairs take around one to two hours.
When should I call a professional?
If you smell gas, hear burning, or cannot safely access electrical connections, stop and contact a licensed technician.
Call a pro if you’re unsure or encounter dangerous situations.
Watch Video
Key Takeaways
- Identify root cause before replacing parts.
- Always unplug and test safety devices first.
- Keep vents clean to prevent overheating.
- Document steps and parts for future maintenance.
- The Home Repair Guide team recommends regular preventive checks to extend dryer life.
