Repair Hydraulic Cylinder: A Step-by-Step Guide
A comprehensive, safety-first guide to repairing hydraulic cylinders at home, covering diagnosis, seal replacement, bleeding, testing, and maintenance for DIY enthusiasts.
By following this guide, you will learn how to safely diagnose, disassemble, and repair a hydraulic cylinder, then test for leaks and proper operation. You’ll need basic hand tools, a compatible seal kit, approved hydraulic fluid, PPE, and a clean work area. According to Home Repair Guide, precision seals and proper bleeding are the keys to a durable fix.
What is a hydraulic cylinder and common failure modes
A hydraulic cylinder is a linear actuator that uses pressurized fluid to create force and motion. Inside the cylinder, a piston seals the fluid chamber from the rod side; seals prevent leaks and maintain pressure. Over time, seals wear, contamination, corrosion, or improper lubrication can cause leaks, drift, or sticking, reducing performance. According to Home Repair Guide, many residential or light-industrial cylinders fail due to worn O-rings, piston seals, or gland seals. When you notice oil around fittings, reduced force, or slow retraction, it’s time to inspect the system. Check the rod for scoring and verify mounting hardware isn’t bent or loose. This background helps you distinguish between seal wear, rod damage, and mounting issues that can mimic a leak.
Key takeaways: identify the leak source first, then decide if seals can be repaired or if a replacement cylinder is required.
Safety considerations before you start
High-pressure hydraulic systems can launch fluids and components with enough force to cause serious injury. Before touching the cylinder, disconnect power to the machine, lock out any controls, and relieve pressure according to the manufacturer’s procedure. Wear ANSI-rated safety glasses, chemical-resistant gloves, and protective clothing. Use a spill tray and absorbent pads to contain leaks. Work in a well-ventilated area and keep a fire extinguisher nearby in case of fluid ignition. If you’re unsure whether the system is depressurized, do not proceed; defer to a qualified technician. Home Repair Guide emphasizes safety as a non-negotiable step in any hydraulic repair.
Tools and materials you’ll need
Before starting, gather the basics: a wrench set, torque wrench, seal kit matched to your cylinder size, compatible hydraulic fluid, an approved drain pan, rags, and a clean solvent for surface prep. You’ll also want calipers or a micrometer to measure bore and rod dimensions, a marker for labeling, thread sealant (if recommended by the seal kit), and a means to lift or support the machine if the cylinder is heavy. Having hoses labeled and ports capped during disassembly helps prevent cross-contamination. Always choose a seal kit designed for your cylinder bore and rod diameter; mismatched seals can fail quickly and cause more leaks.
Diagnosing the leak and assessing damage
Start by cleaning the exterior of the cylinder and inspecting all fittings and ports for oil traces. Use a mirror and light to spot micro leaks around gland nuts and end caps. If you can depressurize safely, perform a bench test by securing the cylinder on a test stand and applying a controlled load while watching for leaks around seals and fittings. Take note of where the fluid escapes—this will guide you to worn O-rings, piston seals, or gland seals. If the leak persists after tightening fittings, it’s often a seal or bore surface issue rather than a loose connection. Document findings and decide on repair vs. replacement based on bore rust, scoring, or pitting.
Seals and components: choosing replacement parts
Replacement parts must match the cylinder’s bore size, rod diameter, and seal type. A typical repair kit includes piston seals, rod seals, and gland O-rings. Ensure compatibility with the hydraulic fluid you use, as some materials swell or degrade with certain oils. Inspect the rod for scoring; if score marks are deep, sealing will be compromised even with new seals. If the bore is corroded, patching may not be sufficient. For small to medium cylinders, a full seal kit is usually cost-effective, but for damaged bores you may need professional refurbishment or a new cylinder.
Removing the cylinder and accessing seals
Carefully detach the cylinder from the machine, support its weight, and remove end caps to access seals. Remember to cap exposed ports to prevent contamination. Take photos during teardown to aid reassembly. Clean internal cavities with a compatible solvent, then inspect grooves for wear. If seals are hardened or nicked, replace them rather than cleaning and reusing. Keep components organized and avoid mixing old and new parts, which can misalign tolerances.
Replacing seals and resealing the cylinder
Install new piston seals, rod seals, and gland seals in the correct orientation as specified by the kit instructions. Lubricate surfaces with clean hydraulic fluid before assembly, and reassemble with even torque on end caps. Ensure the rod moves freely without binding, and verify that no dirt particles are trapped in seals. After assembly, test the seal seating by gently applying pressure while supporting the rod, checking for even movement and the absence of leaks. If you notice leakage around a port, reseat fittings and confirm thread engagement.
Bleeding the system and testing for leaks
Bleed air from the circuit according to the system’s procedure, usually by cycling the cylinder under light load and watching for air bubbles or pressure fluctuations. Refill hydraulic fluid to the recommended level and purge any remaining air through the bleed ports. With the system pressurized, observe the cylinder for any residual leaks over a period of time; a typical test window is 15–30 minutes, but longer is prudent for heavy-duty systems. If leaks persist, revisit seal seating and consider a reseat or seal kit replacement.
Maintenance tips to extend cylinder life
Schedule regular inspections for seals and mounting hardware, and replace seals at the first sign of wear. Use the manufacturer’s recommended hydraulic fluid and check for contamination in the reservoir. Keep the cylinder clean, avoid exposing it to corrosive environments, and store spare parts in a clean, dry place. Document repairs and maintain a service log; this helps identify recurring issues and guides future maintenance. A proactive maintenance routine reduces downtime and extends the life of the cylinder.
Authority sources and further reading
For safety and best practices, consult government and university resources on hydraulic systems and machinery safety. See OSHA guidelines on hydraulic equipment safety and university extension articles on hydraulic repair fundamentals. These sources provide general principles you can apply to home repairs while ensuring safety and compliance.
Authority Sources
- OSHA: https://www.osha.gov
- Penn State Extension: https://extension.psu.edu
- University of Illinois Extension: https://extension.illinois.edu

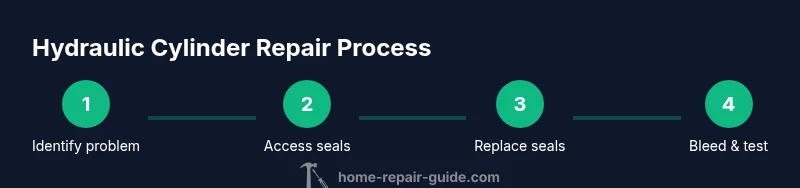

Process overview and next steps
A successful hydraulic cylinder repair combines accurate diagnosis, correct seal replacement, careful assembly, and a thorough test. If you follow the steps outlined above and work at a measured pace, you’ll improve the odds of a durable fix. Always prioritize safety and consider seeking professional help for high-pressure or large-volume systems.
Tools & Materials
- Safety glasses (ANSI Z87.1 compliant)(Eye protection mandatory during disassembly and testing)
- Chemical-resistant gloves(Protect hands from hydraulic fluid and solvents)
- Wrench set (adjustable and fixed)(For end caps, fittings, and mounts)
- Torque wrench(To the manufacturer-recommended torque)
- Calipers or micrometer(Measure bore and rod diameters)
- Seal kit matched to cylinder bore/rod(Includes piston, rod, and gland seals)
- Compatible hydraulic fluid(Use the fluid specified by the equipment maker)
- Drain pan and absorbent pads(Contain and clean spills)
- Solvent or cleaner(Clean surfaces before assembly)
- Marker or labels(Label hoses/ports during disassembly)
- Rags or shop towels(Keep work area clean)
- Seal lubricant or light hydraulic oil(Lubricate seals during assembly)
Steps
Estimated time: 3-6 hours
- 1
Depressurize and isolate
Power down the system and relieve pressure using the manufacturer’s procedure. Confirm the pressure gauge reads zero and the system cannot re-pressurize unexpectedly. This prevents a dangerous, energetic release during disassembly.
Tip: If unsure, wait for a qualified technician to verify pressure release. - 2
Drain fluid and prepare workspace
Place a drain pan under the cylinder and drain the hydraulic fluid. Capture used oil in a labeled container and contain spills with absorbent pads. Clean the exterior before removing parts to avoid contaminating seals.
Tip: Keep the old fluid separate from fresh to prevent contamination. - 3
Remove cylinder from machine
Support the cylinder weight securely, disconnect hoses, and unbolt the mounting hardware. Carefully lift the cylinder away from the system, placing it on a stable bench for access to seals.
Tip: Take photos during removal for reference during reassembly. - 4
Disassemble to access seals
Remove end caps and gland components to access piston and rod seals. Inspect grooves and seals for wear or damage. Clean the parts with solvent, and keep components organized to avoid mix-ups.
Tip: Do not force seals loose; use appropriate tools to avoid scoring. - 5
Install new seals and reassemble
Lubricate new seals lightly with clean hydraulic fluid, install in the correct orientation, and torque end caps to spec. Check for smooth rod movement without binding.
Tip: Double-check seal order against the kit instructions. - 6
Reconnect, bleed, and fill
Reconnect hoses, fill the reservoir with clean fluid, and bleed out air per the system’s procedure. Move the cylinder through its full range a few times under light load to expel air.
Tip: Watch for sudden pressure spikes; if present, stop and recheck fittings. - 7
Test for leaks and function
Apply the intended load gradually and monitor all seals and fittings for leaks. Verify the cylinder returns and extends smoothly, without drift or hesitation. Document results and clear the area of residue.
Tip: If leaks persist, reseat seals or consult a professional.
FAQ
Can I repair a hydraulic cylinder myself at home?
Yes, with the right tools and safety precautions. Complex or high-pressure systems may require professional service. Always follow manufacturer procedures and local regulations for fluid disposal.
Yes, you can repair a hydraulic cylinder at home if you have the right tools and safety steps, but seek professional help for high-pressure systems.
What are the signs that a hydraulic cylinder needs repair?
Common signs include visible leaks around seals, drifting rod position, reduced force, or slow/uneven movement. Persistent leaks indicate worn seals or bore damage requiring replacement.
Look for leaks, drift, or sluggish movement; these usually mean seals or bore wear.
Are new seals always the right solution?
New seals are often the right fix, but you must ensure the bore is not excessively worn or corroded. In severe bore damage, seal replacement won’t restore performance and a resurfaced bore or new cylinder may be needed.
New seals help, but if the bore is badly damaged, you may need other remedies.
Can I reuse old seals after cleaning?
Reusing seals is not recommended. Worn or stiff seals can fail quickly and lead to renewed leaks. Always replace with new seals from the correct kit.
Don’t reuse old seals; replace with new ones for reliability.
How do I know the correct seal kit size?
Measure the bore diameter and rod diameter accurately, then match the kit to those dimensions. If in doubt, contact the manufacturer or a hydraulic repair professional.
Measure bore and rod precisely to pick the right kit, or get professional help.
What safety steps are non-negotiable?
Depressurize the system, wear PPE, contain spills, and work in a ventilated area. Keep a fire extinguisher nearby when handling hydraulic fluids.
Depressurize, wear PPE, and handle fluids safely.
Watch Video
Key Takeaways
- Identify leak sources before disassembly
- Use correctly sized seal kits for your cylinder
- Bleed the system after assembly to remove air
- Dispose of used hydraulic fluid safely
- Document maintenance for future repairs
