Repair Brake Master Cylinder: Step-by-Step Guide
Learn how to diagnose, reseal, and safely repair a brake master cylinder with a practical, step-by-step approach. This guide covers tools, safety, and when to seek professional help.
Repairing a brake master cylinder involves identifying pedal feel issues, leaks, and the need for resealing or replacement. This quick guide outlines symptoms, required tools, and a safe, step-by-step approach to get you back on the road with reliable braking. For major cylinder work, consult a professional.
Objective and scope of brake master cylinder repair
Repair brake master cylinder work centers on restoring pedal feel, preventing leaks, and ensuring reliable hydraulic braking. A common starting point is assessing pedal softness or sponginess, fluid color, and visible leaks. According to Home Repair Guide, diagnosing brake pedal issues begins with the master cylinder and fluid condition. This guide helps homeowners and renters understand when resealing is enough and when a full replacement is safer. You will learn the signs of trouble, the tools you need, and the safe sequence to inspect, disassemble, reseal, bleed, and test the system. The goal is to achieve a firm, consistent brake pedal and to minimize the risk of brake failure due to internal leaks or worn seals. Throughout, keep in mind vehicle-specific requirements, especially regarding fluid type and torque specs. By following a careful, safety-conscious approach, you can often extend the life of your braking system without unnecessary part replacements.
Safety first: prerequisites and precautions
Before starting any brake-related work, engage the parking brake, chock all wheels, and ensure the vehicle is on a flat, solid surface. Wear eye protection and gloves; brake fluid can irritate skin and damage paint. Do not work under a car that is only supported by a jack—use jack stands. Have a clean workspace and ready rags or towels to catch drips. If you notice a heavy, continuous fluid leak or a pedal that sinks under pressure after resealing, stop and consult a professional. These safety steps reduce the risk of fluid exposure and injury, and they help prevent introducing air into the hydraulic system during the repair.
Tools, materials, and workspace setup
A well-equipped workspace speeds up repairs and reduces mistakes. Gather a metric and SAE socket set, flare nut wrenches, line wrenches, a brake bleeder kit, a bench vise or clamp, a catch pan, shop towels, brake cleaner, fresh brake fluid compatible with your vehicle, a seal kit specific to your master cylinder model, and safety gear. Clean the area around the reservoir cap before opening it to minimize contamination. Keep a note of the vehicle's fluid type and DOT specification. Organize hoses and fittings so they don’t tangling during removal.
How the brake master cylinder fits into the system
The master cylinder converts pedal movement into hydraulic pressure that actuates the brake calipers or wheel cylinders. Inside, a piston moves within a bore, creating pressure in the fluid. Wear on seals, scoring of the bore, and contamination in the fluid can degrade performance. If you observe a软 pedal, leaks at the reservoir, or visible corrosion on exposed components, the master cylinder might be at fault. Understanding this context helps you decide whether resealing, replacing seals, or a full replacement is necessary. This knowledge also informs your bleed sequence and how to check for air after reassembly.
Diagnosing symptoms that point to the master cylinder
Symptoms that indicate master cylinder issues include a soft or sinking pedal, uneven brake feel, or brakes that require heavy pressure to engage. A low fluid level with no external leaks could signal internal leakage. Inspect the reservoir for smooth, clean fluid and check for signs of varnish or debris in the fluid. If you have recently replaced brake hoses or calipers, air could be trapped in the system and mimic master cylinder symptoms. Accurate diagnosis reduces the chance of unnecessary replacement of other components.
Common failure modes and fixes
Master cylinders commonly fail due to worn seals, scoring in the bore, or internal leaks. Resurfacing a bore or replacing seals can fix minor wear, but severe scoring or corrosion often requires replacement. Rebuilds are possible when a proper seal kit is available, but compatibility with your vehicle and safety concerns must be weighed. In many cases, replacing the master cylinder with a rebuilt or new unit improves reliability and pedal feel more consistently than partial repairs. Always verify that the replacement part matches your vehicle’s make, model, and year.
Reassembly, bleeding, and test
After resealing or replacing the master cylinder, reconnect the brake lines, reinstall the reservoir, and carefully bleed the system to remove air. Bleeding is essential because air in the hydraulic lines causes a spongy pedal and reduced braking efficiency. Use the recommended bleeding method for your vehicle (gravity, pressure, or hybrid). Once bled, pump the pedal to establish a firm feel, then check for leaks. Finally, perform a cautious road test in a safe area to confirm braking performance and pedal consistency.
Maintenance, warranty, and when to seek professional help
Regular inspection of the brake fluid level and color helps catch issues early. If you notice persistent leaks, cross-threaded fittings, or inconsistent pedal feel after a repair, consult a professional. Many master cylinder repairs involve critical safety considerations, so warranty coverage and vehicle-specific guidelines should guide ongoing maintenance. Home Repair Guide recommends professional evaluation for modern vehicles with complex brake systems to ensure reliability and safety.
Tools & Materials
- socket set (metric and SAE)(3/8 in drive; include deep sockets)
- flare nut wrenches(7mm–11mm range)
- line wrenches(for brake lines)
- brake bleeder kit(manual or vacuum/pressure type)
- catch pan(to capture old fluid)
- shop towels(lint-free; disposable)
- brake cleaner(use for components; avoid contact with paint)
- brake fluid(DOT specification per vehicle)
- seal kit for master cylinder(model-specific for your vehicle)
- bench vise (optional)(helps with seal installation)
- gloves and eye protection(protect skin and eyes from fluid)

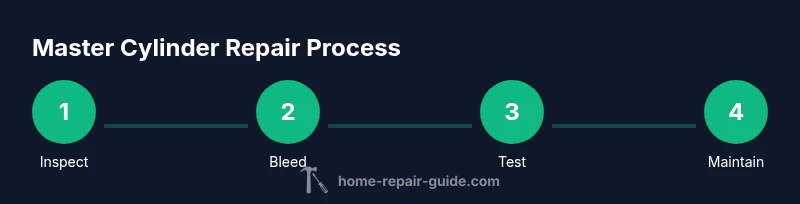

Steps
Estimated time: 2–3 hours
- 1
Prepare workspace and safety gear
Park on a flat surface, engage parking brake, and chock wheels. Put on safety glasses and gloves. Gather all tools and fluids, and disconnect the battery only if electrical work is involved near the repair area.
Tip: Keep a clear discharge area; place a container under the master cylinder to catch spills. - 2
Inspect fluid and assess symptoms
Check the brake fluid level and color; note any leaks around the reservoir or lines. If you have a soft pedal or sinking pedal, this can indicate master cylinder issues or air in the system. Document symptoms for reference during reassembly.
Tip: Do not open the reservoir if it’s hot or overflowing—allow cooling to prevent burns and splashes. - 3
Remove and bench-bleed the master cylinder
Remove the master cylinder from the vehicle and bench-bleed it to expel air from the internal passages. Secure the part in a vise or support and follow the seal kit instructions for bench bleeding.
Tip: Keep new seals oriented correctly and avoid contaminating the bore with dirt. - 4
Install the new or rebuilt master cylinder
Reconnect the master cylinder to the brake lines, torque fittings to spec, and ensure the reservoir is compatible with the system. Re-secure all lines and fittings and prepare to bleed.
Tip: Use new copper washers on banjo bolts if applicable; ensure no cross-threading occurs. - 5
Bleed the brake system
Bleed brakes in the correct order for your vehicle (commonly from the farthest wheel to the nearest). Remove air until the fluid runs clear and bubble-free.
Tip: Keep the reservoir topped up to prevent air from re-entering the system. - 6
Test and verify
Pump the brake pedal until it firms up, check for leaks, and perform a cautious on-road test in a safe area. Recheck fluid level after the test drive and top off if needed.
Tip: If pedal feel remains spongy, re-check for leaks or trapped air and repeat bleeding as necessary.
FAQ
What are common symptoms of a failing brake master cylinder?
Common signs include a spongy or sinking brake pedal, brakes that grab, low brake fluid level, and occasional leaks. Inspect the reservoir and lines for visible issues as part of the diagnostic process.
Common signs are a soft pedal, leaks, and brakes that grab, which should prompt a diagnostic check.
Can I repair a brake master cylinder at home?
You can reseal or replace a master cylinder if you have mechanical skill, proper tools, and a safe workspace; however, brake systems affect safety, so major work may require a pro.
Resealing is possible with the right tools, but major work is best handled by a professional.
What tools are essential for this repair?
Essential tools include a brake bleeder kit, flare nut wrenches, line wrenches, a bench vise, clean rags, and fresh brake fluid.
You’ll need a bleed kit, wrenches, and brake fluid, plus rags for cleanup.
How do I know when to replace vs rebuild?
If the cylinder is corroded or pistons leak severely or wear is extensive, replacement is safer; rebuilds are feasible for minor wear with correct seals and parts.
Corrosion or heavy wear means replacement is safer.
Is it safe to drive with a soft brake pedal?
No. A soft pedal indicates compromised braking performance and should not be driven until repaired.
Don’t drive until you fix the brake issue.
Do I need to bleed brakes after reinstalling the master cylinder?
Yes. Air in the system can cause a spongy pedal; bleeding ensures firm braking feel.
Yes, you should bleed the brakes after installation.
What brake fluid type should I use?
Use the fluid specified by your vehicle manufacturer and avoid mixing DOT types to prevent damage.
Use the recommended DOT rating and don’t mix fluids.
Watch Video
Key Takeaways
- Inspect for leaks and seal wear in the master cylinder
- Bleed the system after resealing to restore pedal feel
- Use the recommended brake fluid and verify compatibility
- Replace worn seals and nearby fittings to prevent leaks
- If pedal still sinks or brakes grab, seek professional help
