How to Install a Repair Flange: A Practical Guide
Learn how to install a repair flange for leak-free pipe joints. This guide covers tools, sizing, safety, step-by-step actions, and maintenance tips from Home Repair Guide.
By the end, you'll confidently install a repair flange on a damaged pipe joint and restore a leak-free connection. You'll need basic plumbing tools, the correct flange size, and replacement wax ring or seal, plus plumber's tape and silicone as needed. According to Home Repair Guide, measure flange diameter, align bolt holes, and tighten evenly to avoid warping.
What is a repair flange and when to use it
A repair flange is a replacement fitting designed to restore a damaged or corroded drain flange to a reliable seating surface for a toilet, sink, or other plumbing fixture. When the existing flange cracks, tilts, or rots, a repair flange provides a secure base for bolts and a gasket, helping prevent leaks and foul odors. If you are learning how to install repair flange, start by understanding what you are fixing and the signs that call for a repair rather than a full replacement. Common indicators include visible cracks around the bolt holes, persistent leaks after tightening bolts, or a flange that sits below the floor level, causing the gasket to fail. In many cases, a repair flange can save a project by reusing the pipe while restoring a stable platform for the fixture. This approach is particularly helpful in older homes with cast-iron or clay drains, where replacing the entire pipe would be invasive. Before you begin, consult a local code guide and ensure you have the right size and type of flange for your specific pipe material. The Home Repair Guide team reminds homeowners to proceed with care, verify measurements, and plan for a leak-test after installation.
Common flange styles and compatibility
There are several flange styles used with toilets and sinks. The most common for drainage are PVC or metal flanges that bolt to the drain pipe and seat the gasket under the fixture. When a flange is damaged or poorly installed, a repair flange or retrofit kit can be used to restore the seating surface without replacing the entire pipe. Retrofit kits slide over the existing flange or pipe end, providing a new ring and bolt holes aligned to standard centers. Compatibility depends on pipe material (PVC, ABS, cast iron, copper) and the toilet or sink dimension (center-to-center distance of the bolts). Always measure the diameter and bolt-hole spacing to confirm compatibility. If you are uncertain, bring a sample or photo to a local hardware store or consult a plumber. The right flange will provide a watertight seal when paired with a proper wax ring or gasket and fresh plumber's tape on threads where applicable.
Preparing for installation: assessment, safety, and planning
Preparation reduces surprises. Turn off water supply and drain the line, place towels, and keep a bucket handy. Clear the work area under the fixture; remove the supply line from the shutoff valve and unhook the fixture if needed. Inspect the surrounding area for signs of water damage, mold, or rot, and address any hazards before you begin. Gather your tools and materials in one reachable spot, and confirm you have the correct flange size for your pipe material. Mark the flooring to align the new flange with the toilet or sink position, and plan for a leak-test after installation. Remember to work slowly and methodically; rushing can misalign bolt holes or damage threads, leading to leaks.
Measuring flange size and selecting the correct repair flange
Start by identifying the pipe material (PVC, ABS, cast iron, copper) and the existing bolt-hole pattern. Most drain flanges use standard center distances, but some fixtures require a compatible retrofit. Measure the inside diameter of the pipe opening to determine nominal size (often 3
4
2
1-1/2
2-1/2
3-1/2
4
6
8
etc.). Choose a repair flange that matches the pipe size and bolt pattern. If mounting a toilet, ensure the flange height is flush with the finished floor to avoid wobble. For sinks, verify compatibility with the sink drain assembly. When in doubt, check manufacturer specs or consult a pro. A properly sized repair flange supports a stable seal with a wax ring or gasket and reduces future leaks.
Installing with confidence: best practices and common mistakes
With the right flange selected, position the repair flange so that the bolt holes line up with the fixture’s mounting holes. Use the provided screws or bolts and tighten gradually in a crisscross pattern to prevent warping. Before tightening fully, verify that the flange sits flat against the pipe or subfloor and that there’s no visible gap between the flange and the pipe surface. Apply plumber’s tape to male threaded connections and use a suitable gasket or wax ring for a tight seal. Avoid overtightening, which can crack a plastic flange or strip threads. After securing, reattach supply lines and fixtures carefully, then perform a leak test to ensure you have achieved a watertight connection.
Aftercare and maintenance to prevent future leaks
After installation, run water slowly and monitor the joint for several minutes. Look for any signs of dripping around the flange, and re-tighten bolts in a crisscross pattern if you notice slight leaks. Clean the area and dispose of old materials properly. Periodically inspect the flange for corrosion or movement, especially in older homes or high-traffic fixtures. If leaks recur, it may indicate a larger issue with the pipe, gasket, or subfloor, and you should consult a licensed plumber.
Tools & Materials
- Adjustable wrench(6–12 inch range for versatility)
- Pipe wrench(Useful for stubborn pipes)
- Screwdriver set(Flathead or Phillips depending on bolts)
- Measuring tape(Measure pipe diameter and bolt pattern)
- Repair flange matching pipe size(Choose correct material (PVC, ABS, metal))
- Gasket or wax ring(Size to match flange and fixture)
- Plumber's tape (Teflon tape)(Wrap threads in the direction of tightening)
- Silicone caulk or sealant(Additional sealant where needed)
- Bucket and towels(Contain spills during work)
- Putty knife or scraper(Clean debris from pipe surface)
- Safety glasses and gloves(Protect eyes and hands)
Steps
Estimated time: 50-60 minutes

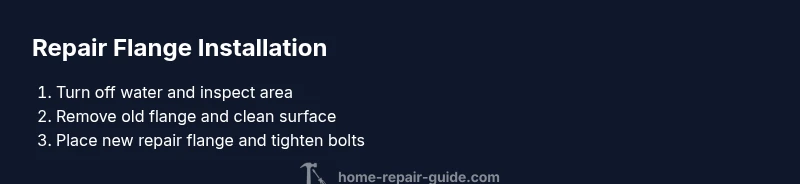

- 1
Turn off water and drain line
Locate the main shutoff and the fixture shutoff, then close them. Open a nearby faucet to relieve pressure and drain residual water into a bucket. This prevents sudden sprays when disconnecting pipes.
Tip: Keep towels and a bucket ready to catch drips. - 2
Remove old flange and clean the area
Carefully lift or unscrew the old flange and remove debris. Use a putty knife to scrape any paper-wax residue and inspect the pipe end for cracks or corrosion.
Tip: Wear safety glasses to guard against debris. - 3
Inspect pipe end for damage
Check for cracks, rust, or misalignment. If damage extends beyond the flange, plan for pipe replacement or professional help.
Tip: If you see deep rust or cracks, replace the affected section rather than patching. - 4
Select and fit the repair flange
Measure the pipe diameter and bolt pattern, then choose a repair flange that matches. Dry-fit the flange to verify alignment before attaching.
Tip: Double-check the height relative to the finished floor. - 5
Install the repair flange and gasket
Place the gasket or wax ring on the flange or fixture, align bolt holes, then insert bolts. Start with hand-tightening to avoid thread damage.
Tip: Tighten gradually in a crisscross pattern. - 6
Tighten bolts and check alignment
Torque bolts evenly, ensuring the flange sits flat. Recheck alignment with the fixture before final tightening.
Tip: Do not over-tighten; over-torquing can crack plastics. - 7
Reconnect water line and test for leaks
Reconnect supply lines, slowly restore water, and run water to test the seal. Check for leaks around the flange for several minutes.
Tip: Have towels ready for drips and promptly address any leak.
FAQ
What is a repair flange?
A repair flange is a replacement ring or retrofit that restores the seating surface of a damaged drain flange, enabling a secure seal with a gasket or wax ring.
A repair flange is a replacement ring that restores the seating surface of a damaged drain flange for a secure seal.
Can I install a repair flange myself?
Yes, many homeowners can install a repair flange with basic plumbing tools, careful measurement, and proper safety. If the pipe is damaged beyond the flange, call a professional.
Yes, with basic tools and careful steps you can install it yourself; if the pipe is damaged, consider a pro.
What if the pipe is damaged beyond repair?
If you notice cracks, severe corrosion, or structural damage, replacing the affected section or consulting a plumber is recommended to prevent future leaks.
If the pipe is damaged, replace the section or seek professional help to avoid leaks.
Do I need plumber's tape or sealant with a repair flange?
Apply plumber's tape on threaded connections and use a gasket or wax ring as recommended by the flange manufacturer. Sealant is optional but helpful in damp environments.
Use plumber's tape on threads and a gasket; sealant is optional but can help.
How do I determine the right flange size?
Measure the pipe diameter and bolt-hole spacing, then match it to standard flange sizes. If in doubt, bring measurements to a hardware store or consult a professional.
Measure diameter and bolt spacing to match a standard size, or ask a pro if unsure.
Watch Video
Key Takeaways
- Choose the correct flange size before installation.
- Shut off water and drain lines prior to work.
- Tighten bolts in a crisscross pattern to prevent warping.
- Test for leaks after reinstalling to ensure a watertight seal.
