Repair Car Aircon Compressor: A Practical DIY Guide
A complete guide to diagnosing, replacing, and maintaining a car air conditioning compressor with practical steps, safety tips, and DIY guidance for homeowners.
This guide helps you diagnose and repair a car aircon compressor. You’ll learn how to identify symptoms, check the clutch and belts, evaluate system pressure, and decide whether to DIY or hire a pro. Practical, safety-focused steps keep you from causing further damage while restoring cooling performance. Follow the steps to safely complete the repair or confirm you need professional assistance.
Understanding the role of the compressor in car AC
In a vehicle’s air conditioning system, the compressor is the heart that circulates refrigerant and builds the high pressure needed for cooling. When the compressor operates correctly, the system absorbs heat from the cabin air and releases it outside, producing cold air inside the car. According to Home Repair Guide, a healthy compressor is not just about cooling power; it also maintains proper system pressure, keeps the refrigerant flowing freely, and synchronizes with the clutch and electrical controls. If any part of this chain falters, you may notice reduced cooling, unusual noises, or belt wear. By understanding the compressor’s role, you’ll better interpret symptoms and decide whether a DIY repair is appropriate for your skill level.
Key terms to know include clutch operation, compressor shaft seal, and discharge pressure. A failing compressor often shows signs such as noisy operation, leaks around seals, or a stalling system demanding more energy from the engine. Recognizing these cues early helps prevent secondary damage like damaged serpentine belts or evaporator freeze.
For homeowners and DIY enthusiasts, the Home Repair Guide team emphasizes cautious, staged troubleshooting. Start with simple checks, then progress to more involved tasks only if you’re confident in your workshop skills and safety practices. Remember: any work on an automotive air conditioning system has legal and environmental considerations, so take time to learn local regulations before handling refrigerants.
note treatment-ngram
Tools & Materials
- Digital multimeter(Test electrical circuits and clutch coil resistance.)
- AC manifold gauge set(Check system pressures and verify charge state.)
- Refrigerant recovery machine(Use only if you are trained and licensed; do not vent refrigerant.)
- Socket set and ratchets(Remove compressor mounting bolts and pulleys.)
- Wrench set (metric/SAE)(Loosen fittings and clamp connections.)
- Torque wrench(Torque bolts to manufacturer specs when reassembling.)
- Pliers and screwdrivers(Silence clamps, disconnect electrical connectors safely.)
- Torque sealant or thread locker(Optional for securing certain fittings.)
- Safety PPE (gloves, safety glasses)(Protect hands and eyes from refrigerants and debris.)
- Drain pan and rags(Catch oil and refrigerant runoff and keep the workspace clean.)

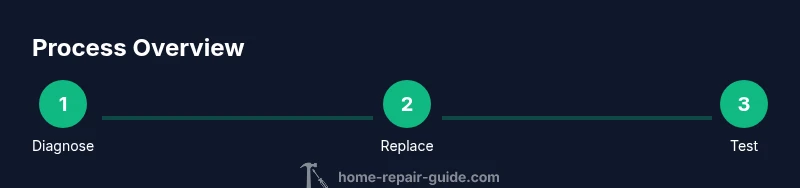

Steps
Estimated time: 4-6 hours
- 1
Assess symptoms and plan
Document symptoms (cold air strength, noise, or leaks) and review service manuals for your vehicle. This initial assessment guides whether to proceed with a DIY compressor replacement or seek professional service. Gather the necessary tools and ensure the workspace is well lit and ventilated.
Tip: Take photos of the wiring harness, belt routing, and mounting points before disassembly. - 2
Disconnect power and secure the vehicle
Disconnect the negative battery terminal to prevent accidental engine start. Use wheel chocks and a stable work surface. This step avoids electrical shocks and ensures your safety while inspecting components.
Tip: Lockout the ignition to prevent any inadvertent starts during work. - 3
Relieve system pressure safely
If the system shows signs of high pressure or refrigerant presence, use a certified recovery machine to evacuate refrigerant following local regulations. Do not vent refrigerant into the atmosphere. This step protects you and the environment and prepares the system for compressor removal.
Tip: Never attempt to depressurize by venting; always use proper recovery equipment. - 4
Disconnect electrical connections and belt
Label and disconnect the compressor electrical connector, pressure sensor, and clutch wiring. Remove the serpentine belt using the belt tensioner tool. Note belt routing for reassembly.
Tip: Photograph belt routing and connector positions for reference. - 5
Remove the compressor mounting bolts
Unbolt the compressor from its bracket, supporting the unit to prevent damage to surrounding components. Carefully detach the low- and high-pressure lines after loosening fittings. Place hardware in a labeled container for reuse or replacement.
Tip: Support the compressor to avoid dropping it on cooling lines. - 6
Inspect mounts, lines, and seals
With the old compressor removed, inspect the mounting area for warping or damage. Check the high- and low-pressure lines for rust or cracks and replace any worn seals. This prevents leaks when the new compressor is installed.
Tip: Replace O-rings with the correct size to ensure a proper seal. - 7
Install the replacement compressor
Mount the new or rebuilt compressor in place and torque bolts to the vehicle’s specification. Reattach the high- and low-pressure lines with new seals as needed. Reconnect the electrical harness and verify the clutch engages.
Tip: Double-check clearance around belts to avoid contact during operation. - 8
Recharge and test the system
Using the recovery machine or an approved recycling method, evacuate and recharge the system with the correct refrigerant charge and oil. Reattach all lines, belt, and wiring, then run the engine and set the AC to maximum. Look for normal cycling and cool air.
Tip: Monitor pressure readings and listen for unusual noises during first run. - 9
Final check and documentation
Check for leaks with a soap solution or electronic leak detector. Document service details, including part numbers, refrigerant type, and charging amount for future maintenance. Schedule a follow-up inspection if performance remains inconsistent.
Tip: Keep receipts and notes for future DIY maintenance or warranty purposes.
FAQ
Can I replace an AC compressor myself?
Yes, experienced DIYers with proper tools can attempt a compressor replacement, but refrigerant handling and system seal integrity are critical. If you’re uncertain about any step, consult a professional.
You can attempt it if you have the right tools and experience, but refrigerants require caution and proper handling.
Is it necessary to evacuate refrigerant before removing the compressor?
Yes. Use a certified recovery machine to evacuate refrigerant and comply with local regulations. Do not vent refrigerant to the atmosphere.
Yes, evacuate with approved equipment and follow local rules.
How long does a typical compressor replacement take?
A compressor replacement is a multi-hour job that can vary by vehicle. Plan for several hours and arrange a workspace that’s safe and well equipped.
It usually takes several hours depending on the vehicle and access to parts.
What maintenance helps extend compressor life?
Regular radiator and AC checks, timely belt tensioning, periodic system checks, and running the AC periodically can help extend compressor life.
Keep the system in good shape with regular checks and by running AC occasionally even in cooler weather.
What are the warning signs of a failing compressor?
No cooling, loud grinding or screeching, refrigerant leaks around seals, and clutch failure are common indicators of a failing compressor.
If you hear grinding noises or lose cooling, plan a diagnostic check for the compressor.
Watch Video
Key Takeaways
- Assess symptoms before tearing down the system
- Use proper refrigerant handling and safety equipment
- Document wiring, belt routing, and torque specs
- Call a pro if you’re unsure about refrigerant recovery or system leaks
- Test the system thoroughly after reassembly and recharge
