DIY Windshield Crack Repair Kit: A Practical How-To
Learn how to stabilize minor windshield cracks using a repair kit, including selecting the right kit, prepping the glass, injecting resin, curing, and safety steps. This guide helps you decide when DIY is appropriate and when to call a pro.
DIY windshield crack repair with a kit can stabilize minor cracks and buy time before a pro visit. This quick answer highlights kit selection, surface prep, resin injection, curing, and safety steps. You’ll learn when DIY is appropriate, how to follow kit instructions, and when to seek professional repair today.
Understanding Windshield Cracks and Kits
A windshield crack or chip can spread rapidly if left untreated. A repair kit windshield crack is designed for minor chips and small cracks, not structural damage, but it can buy you time and reduce the risk of spreading until you reach a professional. The kit provides a resin compound that fills the voids and creates a hard, clear bond that can improve visibility and curb further damage. When choosing a kit, look for resin viscosity suitable for your crack length, an applicator that matches the nozzle size, and clear curing instructions. Always follow safety precautions and work in a well-lit, clean area. According to Home Repair Guide analysis, DIY repairs are most effective on cracks shorter than about 6 inches and not near edges or corners.
How DIY Windshield Repair Kits Work
Windshield repair kits work by injecting a clear resin into the crack or chip. The resin fills microscopic gaps, reduces light refraction that causes distortion, and helps prevent dirt and moisture from entering the fracture. Most kits include an injector, resin bottle, curing surface, and a deburring tool. The key is to apply pressure to push resin into the crack and provide a stable platform for curing. Curing can occur with direct sunlight or a UV lamp, depending on the kit's design. While kits can stabilize minor damage, they do not restore structural integrity, and a later professional repair or replacement may be necessary. Home Repair Guide notes that resin curing times vary with temperature and sun exposure.
Choosing the Right Windshield Repair Kit
Not all kits are created equal. When selecting a kit, check the resin's viscosity (thicker resins fill deeper cracks, thinner resins work for chips), the injector compatibility with your windshield, and the included deburring tools. A kit designed for automotive windshields will include surfaces that resist cracking and a curing method suited to your climate. Read the product instructions for surface preparation, drying times, and safety guidelines. Based on Home Repair Guide research, choose a kit with clear step-by-step visuals and warnings about not attempting repairs on windshields with large cracks.
Prep and Safety Before You Start
Safety first: wear gloves and eye protection, and work in a clean, well-lit area. Clean the windshield around the crack with alcohol wipes or isopropyl solution, ensuring the area is dry before applying resin. Mask off the area with painter's tape to protect the surrounding glass and to keep debris from sticking to the resin. Remove any loose glass fragments gently without forcing the crack, and avoid applying pressure on the cracked edge. This preparation reduces the chance of introducing air bubbles and ensures the resin bonds well. The Home Repair Guide team emphasizes safety as a priority and advises stopping if you see any spreading or a crack that impairs visibility.

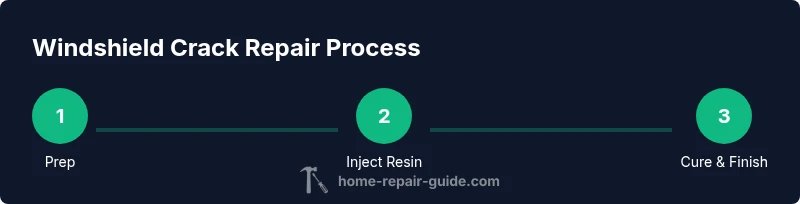

Step-by-Step Overview (High-Level)
This block provides a high-level sequence of steps you’ll follow in detail in the dedicated Step-By-Step section. Start by gathering your tools, cleaning and masking the area, then injecting resin, curing, and finishing. Remember that every kit has its own instructions, so adapt the steps to the specific product. The Home Repair Guide team suggests confirming the kit's curing method before starting.
When to Seek Professional Help
If the crack is longer than about 6 inches, runs through the windshield, or is close to the edge, professional repair or replacement is advised. DIY kits are best for stabilization, not for critical damage or safety concerns. If you notice distortion during driving, chips near the driver’s line, or failure to cure properly, consult a professional immediately. The Home Repair Guide team recommends erring on the side of safety and seeking pro help when in doubt.
Tools & Materials
- Windshield repair kit with resin and injector(Choose a kit designed for automotive windshields; resin viscosity should suit crack length.)
- Isopropyl alcohol (70% or higher)(Used to clean surface before applying resin.)
- Microfiber cloth(Lint-free and dry; no fibers left on the glass.)
- Masking tape(Protects edges and creates a clean application edge.)
- Gloves (nitrile)(Protects hands from resin and fumes.)
- Safety glasses(Eye protection during resin handling.)
- Optional UV lamp or access to direct sunlight(Some kits require UV curing; follow kit instructions.)
Steps
Estimated time: 30-60 minutes (plus curing time)
- 1
Gather and organize supplies
Collect the repair kit, gloves, goggles, alcohol wipes, microfiber cloth, masking tape, and a clean workspace. This ensures you have everything within reach and reduces delays during the process. Check that your kit includes an injector, resin, curing surface, and deburring tool.
Tip: Lay out items in a single row and label them so you don’t mix components. - 2
Prepare the windshield area
Put on PPE, wipe the area around the crack with isopropyl alcohol, and let it dry completely. Remove moisture and debris to promote resin adhesion. Avoid touching the crack with bare hands.
Tip: Use a lint-free microfiber cloth and avoid leaving fibers behind. - 3
Mask the area
Apply masking tape around the crack to create a clean edge and protect the rest of the glass from resin. This helps with precise application and reduces post-repair cleanup.
Tip: Press tape firmly so it seals well and doesn’t peel during resin application. - 4
Inject resin into the crack
Attach the injector, fill with resin as directed by the kit, and slowly apply pressure to push resin into the crack. Stop if you see air pockets forming. Follow the kit's exact sequence for best results.
Tip: Keep the injector perpendicular to the glass to maximize resin penetration. - 5
Cure the resin
Expose the repaired area to sunlight or a UV source per the kit instructions. Cure times vary by temperature and light; avoid disturbing the area during curing.
Tip: If using sun, do not touch the resin while it cures. - 6
Remove excess resin and finish
Gently scrape or deburr the resin smooth with the provided tool and wipe clean. Inspect for uniformity and clarity. If needed, repeat curing steps or consult a professional for a more complete fix.
Tip: Avoid applying too much resin; excess can cause clouding. - 7
Inspect and decide next steps
Assess the repair’s effectiveness. If distortion remains or the crack expands, stop using DIY methods and seek professional repair or replacement. Document conditions in case you need a warranty claim later.
Tip: Keep a repair log and photos for reference.
FAQ
Can I fix a windshield crack with a repair kit at home?
Yes, for small chips or cracks. Larger cracks or those affecting visibility should be handled by a professional. Always evaluate safety first.
Yes, for small chips or cracks, but not for large or risky damage. If in doubt, seek a professional.
What size cracks can a windshield repair kit fix?
Most kits are designed for chips and cracks up to about 1-2 inches in length. Cracks longer than that often require replacement or professional repair.
Most kits fix small chips or cracks up to a couple inches, not long cracks.
How long does curing take?
Curing times vary by kit and conditions but typically range from 15-30 minutes in sunlight to longer indoors. Always follow the kit’s directions.
Cure time varies; check your kit, but expect 15-30 minutes with sun.
Will a DIY repair make the windshield safe to drive?
DIY repairs can stabilize a crack temporarily, but they do not guarantee safety or structural integrity. If the crack spreads, replace the windshield.
DIY repairs can stabilize temporarily, but safety depends on crack size and placement.
Is it safe to reuse a kit after opening?
Most windshield repair kits are designed for single-use. Reusing components can lead to poor curing and cloudy results. Check the kit instructions.
Most kits are single-use; reuse is not recommended.
Is repairing near the edge advisable?
Edge cracks are more likely to spread; if the crack is near an edge, consult a professional to assess whether DIY repair is appropriate.
Edge cracks can spread; consider professional help for edge areas.
What safety precautions should I take?
Wear gloves and safety glasses, and ensure proper ventilation. Avoid inhaling fumes and keep resin away from skin.
Wear gloves and safety glasses, and work in a ventilated area.
Watch Video
Key Takeaways
- Assess crack size and location before DIY.
- Follow kit instructions precisely for best resin bonding.
- Cure times depend on light/temperature; don’t touch early.
- DIY can stabilize but may not restore safety.
- Seek professional repair if in doubt or safety is at risk.
