General Electric Oven Repair: Step-by-Step Guide
A practical, safety-minded guide for diagnosing and repairing GE ovens, covering heating issues, control codes, door seals, and replacement parts with clear steps.
By the end, you will be able to diagnose and perform basic repairs on a General Electric oven, safely and effectively. This quick guide covers common heating problems, door seal checks, control panel codes, coil and element tests, and when to replace parts. You’ll also learn essential safety steps, tool prep, and how to power down the unit before starting.
Understanding GE Ovens: Design, Common Failures, and Terminology
GE ovens share a standard layout: bake and broil heating elements, a temperature sensor or thermostat, a control board, and a door with a gasket. This layout matters when diagnosing issues. According to Home Repair Guide, the most common GE oven problems fall into a few categories: heating not starting or not reaching temperature, temperature drift, door not sealing, and persistent display error codes. Always consult your model’s manual and locate the rating plate for specifics. Knowing terminology helps you communicate problems clearly: 'bake element' and 'broil element' refer to bottom and top heating coils; 'thermostat' or 'temperature probe' gauges actual heat; 'control board' interprets inputs; 'infinite switch' or 'selector' powers the coils. With this foundation, you can approach diagnostics rationally rather than guessing.
Safety First: Power Down, Grounding, and Protective Gear
Electric ovens pose shock risk even when unplugged if you re-energize unexpectedly. Before you touch any wiring, switch off the circuit breaker, unplug the unit, and confirm there is no power at the outlet with a non-contact tester. Wear insulated gloves and safety glasses, and work in a well-lit area. Keep a dry, clean workspace and remove any flammable items nearby. According to Home Repair Guide, following these safety steps reduces the chance of accidental short circuits and injuries during repairs. If you feel unsure at any point, pause and reassess your plan.
Tools and Materials You'll Need for GE Oven Repair
Have a clear, organized toolkit before you begin. This section lists essentials and optional items to streamline the repair process and avoid trips to the hardware store. Ensure you have the right gauges and model-specific parts on hand, as compatibility matters for performance and safety. A well-prepared toolbox saves time and reduces mistakes, especially when testing components under power-off conditions. If you don’t own some specialized tools, you can often borrow from a neighbor or hire a local appliance technician for the tricky tasks. Remember: the goal is to complete safe, effective diagnostics, not rushed improvisation.
Diagnosing Heating Problems: Bake vs. Broil, Temperature Drift
When your GE oven won’t heat evenly or reaches the wrong temperature, start with symptom-based evaluation. Is heat present at one setting but not another? Does the oven drift by more than 20-30 degrees compared to a reference thermometer? Document these observations before testing individual components. The most common culprits are faulty heating elements, inaccurate thermostats, or sensor problems. By isolating the issue to a specific subsystem, you can determine whether to replace a part or recalibrate the control.
Inspecting Heating Elements: Bake and Broil Element Tests
Visual inspection is the first step: look for cracks, blistering, or corrosion on both bake and broil elements. If you see damage, element failure is likely. For a definitive check, use a multimeter to test continuity. An element showing infinite resistance is defective and should be replaced. If both elements test okay, the issue may be elsewhere in the circuit. Handle elements only with the unit unplugged and cooled, as even seemingly harmless components can retain heat.
Calibrating Temperature and Temperature Sensor Checks
Temperature calibration ensures the oven’s internal temperature aligns with the user setting. If a 350°F setting shows 375°F in the oven, the sensor or control board may be out of calibration. Use an oven-safe thermometer to verify actual temperatures, and follow the model’s calibration procedure in the manual. If readings remain inconsistent after calibration, the temperature sensor or its wiring may be defective and require replacement.
Checking Door Seals, Hinges, and Gaps
A poor door seal allows heat to escape, causing temperature instability and longer preheating. Inspect the door gasket for tears or flat spots, and ensure the hinges operate smoothly without sagging. If the door does not seal properly when closed, test with a thin sheet of paper you slide along the door edge—if it easily slides out, sealing is compromised. In many GE ovens, worn seals are a common cause of heat loss and uneven baking.
Control Panel, Knobs, and Electrical Signals
The control panel translates user input into oven actions. If the display is erratic or buttons are unresponsive, there may be a faulty control board or a loose connection. Inspect for signs of burn marks or swollen capacitors on the control board. Take photos of connector pins before unplugging any cables; reassembly should follow in the reverse order. Some issues are code-driven and require referencing the user manual for correct error codes and their meanings.
Electrical Connections and Safety Protocols
Loosened connectors or damaged wiring can disrupt power delivery to elements and sensors. With power off, inspect main harnesses for corrosion, melted insulation, or frayed wires. Make sure all grounds are intact and that any crushed or pinched wires are repaired or replaced. Use a multimeter to verify continuity across critical circuits, but avoid touching live conductors. If you notice any damage beyond simple tightening, replace the affected wiring.
Replacing Common Components: Elements, Sensors, and Thermostats
If diagnostics point to a faulty component, replace with GE-compatible parts from an authorized supplier. Ensure the replacement matches your model’s number and generation (electronic control vs. basic knob control). After installation, re-seat all connectors, reset any calibration, and re-tighten screws to prevent future looseness. Keep a record of parts swapped and dates for future service.
Running Functional Tests: Bake, Broil, Timers And Auto-Cycle
Once reassembled, perform a staged test: run bake and broil cycles at several temperatures to verify consistent heat. Check timer functions and auto-cycle sequences to ensure the oven responds to user inputs and shuts down correctly. If any cycle fails to start or ends abruptly, re-check all wiring connections and sensor readings. Record results to guide future maintenance.
When to Replace vs Repair: Cost, Longevity, and Warranties
If your oven is older or requires multiple major components, replacement may be more economical than ongoing repairs. Consider energy efficiency, warranty status, and the expected lifespan of GE ovens in your home. The Home Repair Guide team notes that balancing upfront parts costs against long-term energy use and reliability often favors replacement when the unit is past its mid-life.
Budgeting and Maintenance Takeaways
Set aside a maintenance margin for small fixes and routine inspections to extend oven life. Create a simple schedule for cleaning, door seal checks, element inspections, and thermostat tests. Regular checks reduce the chance of major failures, save money, and help you keep your GE oven running reliably.
Tools & Materials
- Screwdriver set (Phillips and flathead)(Phillips #2 and slotted screwdriver; magnetic tip preferred)
- Multimeter(For testing continuity and resistance)
- Oven thermometer(Probe actual oven temperature)
- Nut driver set(For panel screws)
- Insulated gloves(Heat resistant, 14 inch or longer)
- Flashlight or headlamp(Illuminates dark corners)
- Replacement parts (GE element, thermostat, sensors)(Only if tests indicate fault)
- Electrical tape and zip ties(Organize wiring and secure loose harnesses)

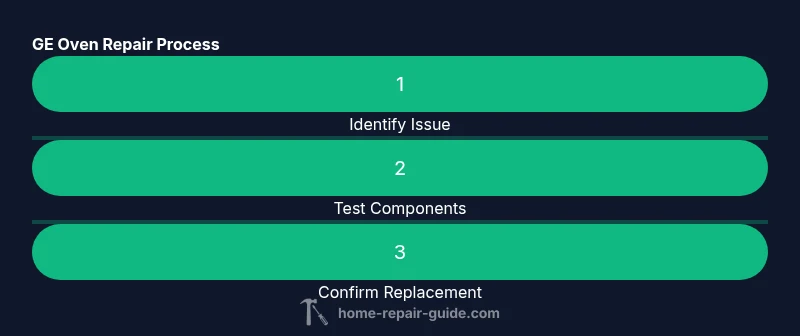

Steps
Estimated time: 60-120 minutes
- 1
Power down and unplug the oven
Unplug the unit from the wall outlet and switch off the circuit feeding the oven. This is the single most important safety step to prevent electric shock during inspection.
Tip: Double-check that the display is dead before touching internal components. - 2
Remove racks and access panels
Take out oven racks and loosen any screws securing the rear access panel or bottom cover per your model. This creates a clear path to heating elements and wiring.
Tip: Use a magnetic tray to hold screws so they don’t roll away. - 3
Look for obvious damage
Inspect the bake and broil elements for cracks, burns, or broken connections. Also check door gasket for tears and hinges for looseness.
Tip: Don't force connectors or wires; note which parts look stressed. - 4
Test heating elements for continuity
Set a multimeter to the continuity/ohms setting and test the bake and broil elements for low resistance. An open circuit indicates a faulty element that should be replaced.
Tip: Ensure elements are cool and disconnected before testing. - 5
Check thermostat and temperature probe
If temperature is off, test the sensor with a calibrated thermometer and compare to a reference reading. If readings don’t track the knob setting, the sensor or calibration may be out of spec.
Tip: Calibration is model-specific; check the manual for correct values. - 6
Inspect the control board and knobs
Remove the control panel if accessible and look for burning, loose solder joints, or swollen capacitors. Verify that the keypad and selector switch send correct signals to the oven.
Tip: Take photos before disconnecting connectors to aid reassembly. - 7
Examine wiring harnesses and connections
Trace the main cabling to ensure there are no frayed wires or loose connectors. Corrosion or heat damage can lead to intermittent heat or no heat at all.
Tip: Disconnect power before touching any harnesses. - 8
Replace faulty components
Install new heating elements, thermostat, or sensor as indicated by tests. Use GE-compatible parts and re-seat all connectors firmly.
Tip: Verify part compatibility with your exact model number. - 9
Reassemble and reconnect power
Replace access panels, racks, and screws. Plug the oven back in or restore circuit power, then prepare to test.
Tip: Do not power on until everything is reassembled. - 10
Calibrate and run a test bake
Set a test bake at a known temperature (e.g., 350°F) and compare the actual oven temp with a separate thermometer. Adjust calibration per the manual if needed.
Tip: Run at least one 15-minute cycle to verify stable heat. - 11
Run functional tests
Perform bake, broil, and timer tests to ensure all functions respond to settings. Watch for error codes and verify display messages align with the manual.
Tip: Document results to track improvements over time. - 12
Decision point: repair or replace
If multiple failures persist or the cost nears a new oven purchase, evaluate repair vs replacement. Consider age, energy efficiency, and warranty.
Tip: Budget for parts and potential labor if you hire a pro.
FAQ
Can I repair a GE oven myself, or should I hire a technician?
You can handle many basic GE oven repairs yourself if you follow safety steps and have the right tools. For complex issues like a faulty control board or gas-related components, consult a technician.
You can do some repairs yourself if you follow safety steps; for complex issues, hire a technician.
How do I know if the heating element is bad?
Signs include no heat from bake or broil, visible blistering, or a blown fuse. Test with a multimeter for continuity; a non-contact reading usually indicates failure.
Check for heat, inspect for damage, and test with a multimeter.
Are GE oven repairs covered under warranty?
Warranty terms depend on model and purchase date. Check GE’s warranty policy and your receipt; many repairs require authorized service if within the period.
Warranty terms vary; check GE policy and your purchase date.
How long does a typical GE oven repair take?
A simple component replacement can take about 60-90 minutes, while complex board or sensor work may require 2-3 hours or more.
Most basic fixes take about an hour; more complex repairs take several hours.
When should I replace the oven instead of repairing?
If the oven is old, energy-inefficient, or has multiple failing parts, replacement might be more cost-effective in the long run.
Sometimes replacement is cheaper than multiple repairs.
What maintenance helps prevent future GE oven failures?
Regular cleaning, door seal inspection, element checks, and thermostat testing can catch issues early and extend oven life.
Keep it clean and test components periodically to prevent failures.
Watch Video
Key Takeaways
- Always disconnect power before handling the oven
- Identify the exact faulty component with testing, not guesswork
- Use model-specific parts and manuals for calibration
- Document tests and results for future reference
- Call a pro if multiple issues persist or the unit is old
