Ford F-150 Transmission Repair: Step-by-Step Guide
Comprehensive, practical guide to diagnose, maintain, and perform safe transmission repairs on the Ford F-150. Learn fluid checks, pan service, filter replacement, and when to call a professional for complex repairs. From Home Repair Guide.
This guide provides a safe, step-by-step approach to diagnosing and performing basic transmission maintenance and repairs on a Ford F-150. You’ll learn how to verify symptoms, check fluid health, inspect for leaks, replace the filter and pan gasket, and perform a controlled fluid fill. It also outlines when a professional repair is the wiser choice.
Why transmission health matters for the Ford F-150
A healthy transmission is central to reliable acceleration, smooth gear changes, and overall drivetrain durability. For Ford F-150 pickup owners, neglecting transmission maintenance can lead to slipping, harsh shifts, or eventual failure that may strand you on the road. This section explains why regular checks matter, what signs to watch for, and how proactive maintenance can save time and money over the life of the vehicle. The guidance here reflects the Home Repair Guide Analysis, 2026 findings, which emphasize practical, safety-first approaches for DIY enthusiasts and informed owners. Staying proactive with fluid health, leak detection, and timely service helps preserve resale value and prevents costly repairs down the line.
Common transmission issues in the Ford F-150
Owners frequently report slipping gears, delayed or harsh shifting, and unusual noises such as whining or clunking from the area around the transmission. Low or contaminated fluid is a common root cause, but problems can also stem from worn seals, clogged solenoids, magnetic debris in the pan, or damaged cooler lines. External leaks around pan gaskets or fittings can mimic internal failures, complicating diagnosis. A methodical diagnostic approach—starting with fluid health, code scanning, and visual inspection—helps identify the real cause and avoid unnecessary component replacement. By understanding typical symptoms and their plausible sources, you can prioritize safe, low-risk tasks and know when to seek pro help.
Safety first: preparing for repairs
Prioritize safety before any wrench turns. Work on a level surface, engage the parking brake, and chock wheels. Disconnect the battery to prevent any electrical mishaps. Wear eye protection and gloves, and ensure you have a drain pan ready for fluids. If you’re uncertain about heavy lifting or hydraulic components, consider asking a professional for assistance. Working in a clean, well-lit area minimizes mistakes and helps you track fluid changes more accurately. Following these precautions protects you, your vehicle, and your wallet.
Tools and materials you’ll need
A practical toolkit makes transmission work safer and more efficient. Essential items include a drain pan, metric socket set, torque wrench, floor jack and jack stands or ramps, a gasket scraper, a replacement transmission filter, a pan gasket, and the correct transmission fluid specified for your Ford F-150. An OBD-II scanner is helpful for pulling transmission codes, though not strictly required for all tasks. Keep the owner’s manual handy for exact fill volumes, torque specs, and model-specific caveats. Having the right tools reduces the risk of damaging fasteners or misaligning components.
Diagnostic workflow: reading codes, checking fluid, and leak inspection
Begin with an OBD-II scan to pull transmission-related codes, then verify fluid level and condition with the engine warm and the transmission in Park. Fluid should be clear and red-toned (not burnt or dark brown). Inspect the pan and magnet for metallic debris that could indicate wear. Check cooler lines and connections for cracks or leaks, and ensure wiring to solenoids is intact. This step-by-step diagnostic helps you isolate problems efficiently and avoids unnecessary parts replacement.
Pan drop and filter change basics
Dropping the pan allows you to inspect internal components and, if applicable, replace the filter. Carefully unbolt the pan, support it to prevent bending, and inspect the magnets and surfaces for debris. If a filter is serviceable, remove the old unit and install a new one, being mindful of orientation. Clean the mating surfaces, replace the gasket, and reseal the pan. This procedure removes built-up debris and improves fluid cleanliness, contributing to smoother operation.
Fluid type, level checks, and proper filling technique
Use the transmission fluid type specified in the owner’s manual or Ford’s official specs. Check level after the vehicle has reached operating temperature and has been in Park for the correct duration. Add fluid in small increments, rechecking the level to avoid overfilling, which can cause foaming and improper lubrication. Proper filling ensures consistent shifts and reduces the risk of air pockets or pressure problems in the system.
Reassembly, test drive, and leak checks
Reinstall the pan with a new gasket, torque bolts to the spec, and reconnect all lines and sensors. Refill to the recommended level and run the engine through a few shifts to circulate the fluid. Perform a cautious test drive in a safe area to verify smooth shifts and note any abnormal noises. After the drive, recheck for leaks and confirm the fluid level again to ensure stability.
When to replace vs repair: cost and risk considerations
Some transmission faults require a rebuild or replacement, especially when internal components are severely worn or when pressure is consistently failing. Compare repair costs with a mid-range replacement option, factoring in vehicle age, intended use, and long-term ownership plans. The Home Repair Guide approach stresses evaluating risk versus reward: prioritize safe, verifiable maintenance first, and seek professional input for complex failures.
Tools & Materials
- Drain pan(Large capacity; 5–8 quarts typical for full drain on most Ford transmissions.)
- Metric socket set(Includes 10mm-19mm sizes; choose deep sockets for recessed bolts.)
- Torque wrench(Ensure accuracy to avoid leaks or bolt fatigue.)
- Floor jack and jack stands or ramps(Use wheel chocks; work on a level surface.)
- Gasket scraper(Gasket removal without scratching aluminum pan.)
- Replacement transmission filter(Ensure compatibility with your model year.)
- Pan gasket(New gasket to ensure a leak-free seal.)
- Replacement transmission fluid(Use the fluid grade recommended by Ford.)
- OBD-II scanner(Helpful for pulling transmission codes.)
- Shop towels and degreaser(Keep surfaces clean during work.)

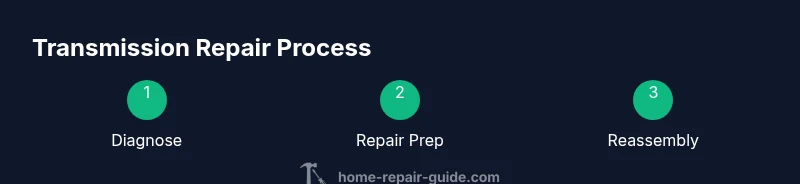

Steps
Estimated time: 2-6 hours
- 1
Prepare workspace and safety
Set the parking brake, secure the vehicle, and disconnect the battery. Gather tools and wear PPE. Ensure the engine is cool before starting.
Tip: Always chock the wheels and work on a level surface. - 2
Scan for codes and assess symptoms
Connect an OBD-II scanner to pull transmission codes. Note symptoms like slipping or harsh shifts to guide your checks.
Tip: Record codes and cross-check with the Ford service manual. - 3
Check fluid level and condition
Warm up the transmission, check level in Park, observe color and smell. Low or burnt fluid needs attention.
Tip: Sample a bit of fluid on white paper; dark brown indicates aging. - 4
Depressurize and drain fluid
Carefully remove the pan drain plug and capture old fluid in the pan. Let it drain completely before removing the pan.
Tip: Keep drain plug for a later reference; note fluid color. - 5
Drop pan and inspect
Unbolt the pan, replace the pan gasket if needed, and inspect the magnets and pan surface for wear debris.
Tip: Avoid bending the pan; support it when removing. - 6
Replace filter and reseal pan
Remove old filter, install new one, and clean the mating surfaces before resealing with a new gasket.
Tip: Take photos during disassembly to aid reassembly. - 7
Refill and verify fluid level
Reinstall the pan, torque bolts to spec, refill with the correct fluid, and recheck level after warm-up.
Tip: Do not overfill; Ford fluids expand with heat. - 8
Reinstall lines and sensors
Reconnect cooler lines and transmission sensors, ensuring secure connections and correct routing.
Tip: Double-check for any kinks or leaks. - 9
Test drive and leak check
Take a controlled test drive, shift through gears, and monitor for leaks or abnormal noises. Recheck fluid level and look for drips.
Tip: If issues persist, stop and seek professional help.
FAQ
Can I repair a Ford F-150 transmission myself?
Basic maintenance and some minor servicing can be DIY, but major repairs (like internal failures) usually require a professional. This guide focuses on safe, low-risk tasks you can tackle at home with the right tools.
You can do basic maintenance at home, but major failures require a pro.
What are common signs of transmission trouble in a Ford F-150?
Common signs include slipping, delayed or harsh shifts, unusual noises such as whining, and warning lights. Fluid color and level can also indicate problems, especially if the fluid smells burnt or looks dirty.
Common signs are slipping, harsh shifts, and warning lights.
Do I need to remove the transmission to perform repairs?
Most basic maintenance can be done with the pan still in place, but some faults require removing the transmission from the vehicle. Assess complexity and safety before attempting major repairs.
Often you can work with the pan off, but some jobs need the full transmission out.
Is transmission fluid replacement necessary for all issues?
Fluid replacement can fix contamination and wear but won’t solve internal mechanical failures. Use the Ford-specified fluid and check level after replacement.
Sometimes replacing the fluid helps, but it won’t fix major failures.
What safety gear should I use for transmission work?
Wear eye protection, gloves, and sturdy footwear. Work in a well-ventilated area and secure the vehicle properly to prevent accidents.
Protect yourself with gloves and eye protection and secure the vehicle.
Watch Video
Key Takeaways
- Plan safety-first before starting work.
- Diagnose using codes and fluid health as primary indicators.
- Replace filter and gasket when dropping the pan.
- Fill fluid to spec and avoid overfilling.
- Test drive and recheck for leaks after work.
