Rim Repair: A Homeowner’s Step-by-Step Guide
Learn how to assess, repair, and protect rim surfaces on standard car wheels. This guide covers safety, tools, steps, and when replacement is safer, from Home Repair Guide.
You’ll learn a safe, practical approach to rim repair for minor damage on standard car wheels. This guide covers diagnosing damage, choosing whether to repair or replace, and a step-by-step repair process that emphasizes safety and wheel integrity. It also highlights when a professional shop is required, the typical costs involved, and how to document the repair for warranty or resale.
What rim repair entails and safety boundaries
Rim repair refers to restoring the wheel rim surface after minor bends, curb impacts, or cosmetic gouges. It's not the same as replacing a tire or repairing the tire bead. While some damage can be corrected with straightening and filler, deep cracks or warping may compromise safety. As the Home Repair Guide team notes, if you see cracks, fractures, or bead leaks around the bead seat, replacement is the safer option. This section helps you understand what qualifies as repairable rim damage and what signs warrant professional evaluation. It also outlines the difference between cosmetic refinishing and structural repair, so you don’t mistake a cosmetic scuff for a safety-critical issue.
Assessing rim damage: when to repair vs replace
Effective rim repair starts with accurate assessment. Look for dents along the lip, gouges into the aluminum or steel, corrosion pits, and any visible cracks. If the damage is limited to superficial scratching or shallow gouges and the rim remains true (no sharp bends), repair is often feasible. If there is a crack, bulge, or loss of air seal around the bead, replacement is strongly advised. The Home Repair Guide team recommends a cautious approach: prioritize safety and road-worthiness over cosmetic improvement. When in doubt, consult a professional technician or the vehicle manufacturer.
Tools and materials you’ll need
Before you begin, gather the essential tools and materials. A lug wrench and jack stands for safe lifting, a tire removal tool and bead breaker, a rubber mallet for gentle shaping, and a degreaser for cleaning. For repairs, you’ll need an epoxy metal filler suitable for aluminum or steel rims, appropriate sanding papers, a primer, and spray paint or powder coat material to protect the finish. Safety gear—gloves and eye protection—should be worn at all times. Optional items include a rim gauge and wheel balancing weights for post-repair tuning.
Preparation steps before you start
Prepare your workspace with good lighting and a clean floor. Remove the wheel from the vehicle in a safe, methodical sequence: loosen lug nuts, lift with a jack, place on stands, and take the wheel off. Clean the rim thoroughly with the degreaser to remove grease and brake dust; this improves filler adhesion and final finish. Inspect the tire bead area for any damage that would require tire replacement instead of rim repair. Label any repaired rim for future reference and warranty documentation.
The repair workflow: straightening, filling, and finishing
For minor bends, gentle straightening using a rubber mallet on a hard, flat surface can restore true contour. If gouges are present, mix a small amount of epoxy metal filler and apply thin, even coats, allowing each layer to cure per the manufacturer’s instructions. After curing, wet-sand the area with 80–120 grit paper, then finish with 220 grit to create a smooth surface. Apply primer, then paint to match the wheel, and finally seal with a clear coat when needed. Mask the bead area to prevent paint from seeping into the tire bead.
Reassembly: bead seating, balancing, and testing
With the repaired rim ready, remount the tire and ensure the bead seats evenly. Re-inflate and check for leaks using soapy water around the bead. Reinstall the wheel, torque lug nuts to the manufacturer's spec, and reinstall the wheel on the vehicle. Balance the wheel using a balancer or stick-on weights to avoid vibrations at highway speeds. Take a careful test drive and listen for unusual noises or vibrations that indicate a mis-seat or improper balance.
Safety considerations and limitations
Rim repair can be risky if you’re working with structurally compromised wheels or if you’re unsure of the process. Do not weld or heat-treat a rim unless you’re trained and equipped for those procedures. If you notice cracks near the bead seat, the rim is likely unsafe for reuse. Keep a fire extinguisher handy when working on pressurized components and always work on a stable surface. If you’re not confident, seek professional help.
Additional resources and references
For further guidance, consult reputable sources on wheel safety and repair practices. The Home Repair Guide team references general repair principles that align with common automotive maintenance standards. See the listed authority sources for official guidance on rim safety, automotive maintenance, and tool usage.
Authority and references
AUTHORITY SOURCES:
- NHTSA: https://www.nhtsa.gov/road-safety/wheels-and-tyres
- OSHA: https://www.osha.gov/SLTC/housekeeping/maintenance
- FTC: https://www.ftc.gov
Tools & Materials
- lug wrench(to remove wheel nuts)
- car jack and jack stands(to safely lift and support the vehicle)
- tire removal tool / bead breaker(to separate tire from rim)
- soft rubber mallet(to avoid scratching the rim)
- rim cleaner / degreaser(for surface prep)
- epoxy metal filler (aluminum/steel)(for gouges and shallow dents)
- sandpaper (80-120 grit, plus 220)(to smooth filler and edges)
- primer and spray paint or powder coat(to protect finish)
- clear coat(optional for extra protection)
- tire mounting lubricant(facilitates bead seating)
- gloves and eye protection(safety gear)
- torque wrench(to tighten lug nuts to spec)
- rim gauge / straight edge(for assessing straightness)
- wheel balancing weights(to rebalance after repair)

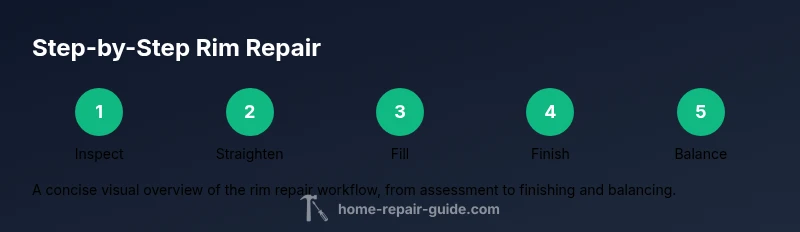

Steps
Estimated time: 2-6 hours
- 1
Inspect rim damage
Carefully inspect the rim for cracks, dents, and corrosion. Determine if the damage is limited to the surface or affects bead seating and structural integrity.
Tip: Wear eye protection and work slowly to avoid missing subtle faults. - 2
Remove wheel from vehicle
Loosen lug nuts, lift the vehicle with a jack, and secure with jack stands before removing the wheel.
Tip: Ensure the vehicle is stable on even ground before raising. - 3
Deflate and remove tire
Remove the valve core to deflate the tire quickly and use tire levers or a bead breaker to separate the tire from the rim bead.
Tip: Be mindful of the bead area to avoid bead seal damage. - 4
Clean rim surface
Wipe the rim with degreaser and a clean cloth to remove brake dust and grease. A clean surface improves filler adhesion and final finish.
Tip: Remove all oils; contaminants reduce bonding strength. - 5
Check rim straightness
Place a straight edge or rim gauge along the lip to identify bends or wobble.
Tip: Small misalignments are common; quantify before proceeding. - 6
Straighten minor bends
Gently tap with a rubber mallet on the opposite side of the bend against a flat, solid surface.
Tip: Work gradually and re-check alignment frequently. - 7
Fill gouges or shallow dents
Mix epoxy metal filler and apply thin layers to gouges; allow curing per manufacturer instructions.
Tip: Avoid overfilling; create a flush surface. - 8
Sand and shape the repair
Wet-sand the repaired area with 80-120 grit, then finish with 220 grit for a smooth contour.
Tip: Keep the sanding motion even to avoid creating new low spots. - 9
Prime and finish
Apply primer, then base coat to match the wheel, followed by a clear coat if desired.
Tip: Mask off the bead area to prevent paint intrusion. - 10
Re-seal bead and mount tire
Re-seat the tire bead and re-mount onto the rim with even seating, using lubricant as needed.
Tip: Check for leaks immediately after remounting. - 11
Balance the wheel
Restart with a balancer or add weights as needed to restore balance.
Tip: Rebalance after any change in weight. - 12
Test drive and inspect
Tighten lug nuts to spec, lower the car, and take a careful test drive for vibrations or pulls.
Tip: If vibrations persist, stop and recheck bead seating and balance.
FAQ
Can you repair a bent rim at home?
Yes, minor bends are sometimes repairable at home if the rim remains true and there are no cracks. Severe bends, cracks, or bead leaks require professional service or rim replacement.
You can fix small bends at home if the rim stays true and there are no cracks. For serious bends or cracks, seek a professional.
Is rim repair durable enough for daily driving?
Durability depends on damage extent and repair quality. A properly performed repair can last for normal driving, but high-stress or aggressive driving increases risk of failure.
If the repair is done correctly, it can last for normal driving, but heavy use increases risk.
When should I replace a rim instead of repairing it?
Replace the rim if there are cracks near the bead, deep structural damage, significant corrosion, or if straightening cannot restore proper alignment.
Replace the rim if there's a crack or major damage, or if straightening can't fix it.
What safety gear should I use for rim repair?
Wear gloves, eye protection, and ensure good ventilation when using paints or fillers. Never work under a vehicle without proper supports.
Wear gloves and eye protection and ensure the car is supported safely.
Will rim repair affect warranty?
Repairs can affect warranties. Check with the vehicle manufacturer or dealer for implications before proceeding.
Repair work can affect warranties, so check with the manufacturer before starting.
Why is balancing important after rim repair?
Repair work changes wheel weight. Balancing ensures smooth ride, even tire wear, and prevents vibrations at speed.
Balancing prevents vibrations and uneven tire wear after repair.
Watch Video
Key Takeaways
- Inspect for structural damage before any repair.
- Use proper safety gear and torque specs throughout.
- Balance and test the wheel after repair.
- Know when replacement is safer than repair.
