Rear Main Seal Repair: Step-by-Step Guide for DIY Car Leaks
Learn how to diagnose and perform rear main seal repair with a clear, step-by-step approach. This guide covers safety, tools, high-level steps, common mistakes, and post-repair checks for durable results.
This guide helps you complete rear main seal repair by diagnosing leaks, preparing a safe workspace, and performing a controlled seal replacement. You’ll drain fluids, access the rear seal, install a new rear main seal kit, and reassemble with correct torque specs. Expect to invest several hours, use proper PPE, and verify the repair with a cautious test run.
What is the rear main seal and why it fails
The rear main seal is a rubber or elastomeric gasket seated between the engine block and the crankshaft. Its job is to prevent oil from leaking out of the back of the engine as the crankshaft spins. Over time, heat, oil contamination, worn crankshaft surfaces, or improper installation can cause stiffness, cracking, or wear. When the seal fails, oil leaks may appear along the transmission bell housing or beneath the engine, which is a classic sign that rear main seal repair is needed. A durable repair depends on confirming the leak source and replacing the seal with a properly sized unit that matches your engine model. In this guide, you’ll learn the essentials of a safe, methodical rear main seal repair.
Safety considerations before attempting rear main seal repair
Safety first. Work on a level surface with the vehicle securely supported by jack stands. Disconnect the battery to prevent any electrical shorts and avoid starting the engine while you work. Drain the engine oil and allow any hot components to cool before handling. Wear protective gloves and eye protection, and keep rags and a waste oil container ready for proper disposal. If your vehicle uses a timing belt or chain, or if you are not confident in engine disassembly, consider professional assistance. Home Repair Guide emphasizes safety and proper procedure to reduce risk during rear main seal repair.
Symptoms that indicate a rear main seal leak
Typical signs include oil spots on the ground near the rear of the engine, rising oil levels despite regular top-offs, and oil mist or smoke around the bell housing. If you notice a strong odor of burning oil or a puddle that appears only after engine heat cycles, there’s a good chance the rear main seal is compromised. It’s important to differentiate rear main seal leaks from valve cover or oil pan leaks, which require different fixes. A careful inspection often begins with a visual assessment and a pressure or dye test to pinpoint the source and confirm that rear main seal repair is warranted.
Tools and parts you'll need for rear main seal repair
Gather a robust tool set, including a jack, jack stands, and a complete socket/torque wrench kit. You’ll need a rear main seal kit compatible with your engine, a scraper, a sealant (as recommended by the seal manufacturer), an oil drain pan, rags, and engine oil for refilling after the repair. Depending on the vehicle, you may also require a crankshaft locking tool, a transmission fluid drain, and a shop manual specific to your model. Having replacement bolts and new gaskets on hand helps ensure a clean, reliable reseal.
Planning and workspace setup for rear main seal repair
Choose a well-lit, flat surface with ample space to lay out tools. Cover the ground with a drip tray to manage leaks. Label bolts and keep track of brackets and brackets in order of removal. Review your vehicle’s service manual for torque specs and order of assembly. Prepare a clean work area and a dedicated container for old seal material. A methodical plan reduces the risk of reassembly errors and ensures a durable rear main seal repair.

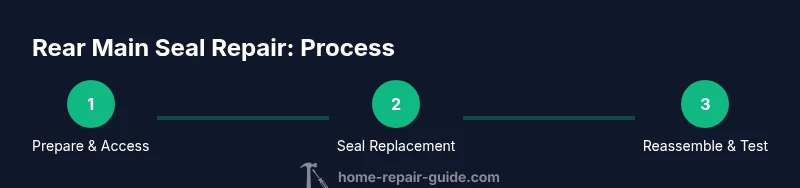

Step-by-step overview (high-level) for rear main seal repair
The process involves safely lifting the vehicle, draining fluids, removing the transmission or rear components to access the rear of the engine, extracting the old seal, inspecting and cleaning the housing, installing the new rear main seal, and reassembling with correct torque. The goal is to create a clean seating surface and a secure leak-free seal. This overview primes you for the detailed, step-by-step instructions that follow.
Common mistakes in rear main seal repair and how to avoid them
Common errors include reusing damaged gaskets, using the wrong seal size, or failing to clean the sealing surfaces thoroughly. Rushing the reassembly or overtightening bolts can distort the housing and damage the seal. Always verify torque specs, inspect mating surfaces for nicks or burrs, and ensure that the seal is installed in the correct orientation. Take your time with the seal seating to avoid leaks.
Post-repair checks and maintenance after rear main seal repair
After reassembly, refill engine oil to the proper level and reconnect the battery. Start the engine briefly and watch for leaks around the rear housing and transmission bell housing. Perform a careful road test at varying speeds to ensure no new leaks develop under pressure. Re-torque critical fasteners if the service manual calls for it and monitor the oil level over the next few days.
When to seek professional help for rear main seal repair
If you lack the necessary tools, have limited space, or the engine requires substantial disassembly, professional service is recommended. Rear main seal repair is a complex task that can affect engine reliability if performed incorrectly. A pro mechanic can diagnose related issues that may accompany a seal failure, such as a worn crankshaft surface or transmission housing damage.
Tools & Materials
- Car jack(capacity appropriate for the vehicle weight)
- Jack stands(minimum 2 stands; use solid points of contact)
- Wheel chocks(place on front and/or rear wheels)
- Socket set(metric and SAE sizes; including square drive)
- Torque wrench(ensure torque specs per manual)
- Screwdrivers and pliers(various sizes for removing components)
- Seal kit for rear main seal(manufacturer-approved kit matching engine model)
- Seal scraper and cleaning brushes(remove old gasket material without scratching)
- Oil drain pan(to collect used engine oil safely)
- Engine oil(new oil type and grade per manufacturer)
- Sealant or gasket maker(as recommended by seal kit)
- Shop towels and rags(keep surfaces clean during assembly)
- Work light and gloves(protect hands and improve visibility)
Steps
Estimated time: Total time: 4-8 hours
- 1
Secure vehicle and workspace
Park on a flat surface, set the parking brake, and chock wheels. Lift the vehicle with a floor jack and support with jack stands on solid points. Ensure you have a clear path to the engine bay and access to the rear area for seal removal.
Tip: Double-check the stands are stable and never rely on the jack alone. - 2
Drain engine oil and prep work area
Place the drain pan beneath the oil pan drain plug. Remove the plug and allow oil to drain completely. Remove any lower shields or covers needed to access the rear of the engine while keeping track of removed screws.
Tip: Keep old oil in a sealed container for proper disposal. - 3
Remove engine components blocking access
Disconnect sensors and brackets that obstruct access to the rear main seal area. Remove the transmission crossmember if required by your model. Keep track of fasteners and arrange them in order of removal.
Tip: Label connectors to ease reassembly and avoid miswiring. - 4
Remove the old rear main seal
Carefully separate the rear cover or bell housing as needed to expose the seal. Remove the failed seal without scratching the crankshaft surface or housing. Clean the sealing surface with a solvent allowed by the manual and inspect for wear.
Tip: Avoid prying against the crank journal; use the correct seal puller tool. - 5
Prepare the housing and seal surface
Inspect the mating surface for burrs, scratches, or corrosion. Lightly deburr and ensure the surface is clean and dry. Dry-fit the new seal to check orientation before final seating.
Tip: Use a straight edge to verify the surface is flat and free of high spots. - 6
Install the new rear main seal
Gently guide the new seal into the groove, ensuring it sits flush and square. If the kit includes a installing tool, use it to avoid tilting the seal. Lubricate the seal lip with clean engine oil before seating.
Tip: Do not twist the seal during installation; alignment is critical for a leak-free seal. - 7
Reassemble and torque fasteners
Reassemble components in reverse order of removal. Use torque specs from the service manual for each bolt and fastener. Ensure gaskets and seals remain properly seated during tightening.
Tip: Tighten in a criss-cross pattern where applicable to avoid distortion. - 8
Refill oil and perform checks
Refill the engine with the recommended oil type and level. Reconnect the battery and start the engine briefly to check for leaks. If any oil seepage is detected, shut down and inspect the seal seating and surrounding surfaces again.
Tip: Check for leaks after a short idle and again after a short drive. - 9
Test run and leak inspection
Take a short road test to bring the engine up to operating temperature. Re-inspect the rear main seal area once cooled. If no leaks appear, perform a final oil level check and reset any maintenance reminders.
Tip: Document the process and note the date of the repair for future maintenance.
FAQ
What is a rear main seal?
The rear main seal seals the gap between the engine block and the crankshaft at the rear of the engine, preventing oil leaks. It is subject to wear from heat and friction and may require replacement if leaks are observed.
The rear main seal sits at the back of the engine and stops oil from leaking out. If it leaks, replacement is often necessary.
How can I tell if the rear main seal is leaking?
Look for puddles under the rear of the engine, oil around the bell housing, or rising oil levels despite refills. A dye test or pressure check can help confirm the source.
If you see oil under the back of the engine or around the bell housing, there may be a rear main seal leak.
Is rear main seal replacement a DIY job?
It is a high-skill, time-intensive repair that may require transmission removal and engine access. It is doable for experienced DIYers with proper tools and manuals, but consider professional help for complex models.
It’s doable for skilled DIYers, but for complex models, a professional may be safer.
How long does rear main seal repair take?
Time varies by model and access. Plan for several hours to a full day, including disassembly, seal replacement, and reassembly.
It can take several hours, sometimes a full day depending on the engine and access.
What tools are required for this repair?
A complete socket set, torque wrench, seal kit, scraper, and oil drainage equipment are typically needed, plus model-specific tools as listed in the service manual.
You’ll need a socket set, torque wrench, a seal kit, and some common hand tools.
Can I drive the car if I see a minor oil spot after the repair?
A small spot may indicate a minor leak; monitor closely. If the leak persists or grows, stop driving and recheck seals and surfaces.
If you see any leak or dripping, stop driving and recheck your work.
Watch Video
Key Takeaways
- Plan the repair with the manual in hand
- Install the correct rear main seal kit for your engine
- Thoroughly clean sealing surfaces before seating
- Verify leak-free operation after a test drive
